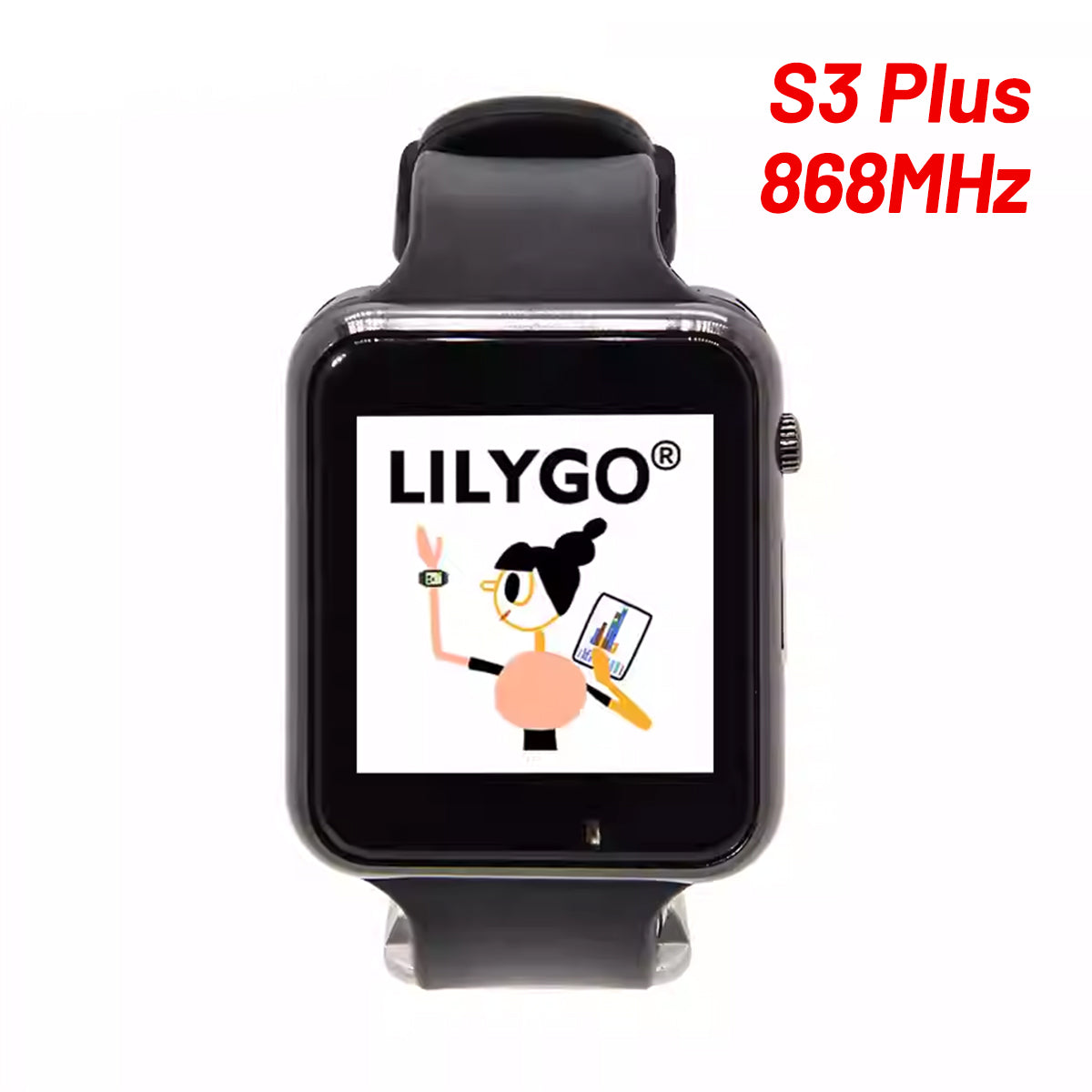

LilyGo T Watch S3 Plus - Mesh Watch with ESP32 WiFi BLE LoRa GPS Compatible Meshtastic & Meshcore

Description:

The LilyGo T Watch S3 is an advanced smartwatch that combines with ESP32 S3 WiFi Bluetooth and SX1262 LoRa Chip.Compatible Meshtastic and Meshcore firmware. Whether you're looking for fitness tracking, health monitoring, or a reliable communication tool, this smartwatch has it all. Seamlessly connect with your outdoor gear and enjoy reliable off-grid messaging via Meshtastic,perfect to using as a Meshtastic/Meshcore Mesh Watch, making it the perfect choice for adventurers, outdoor enthusiasts, and tech-savvy users.

Parameter:

Key Features:

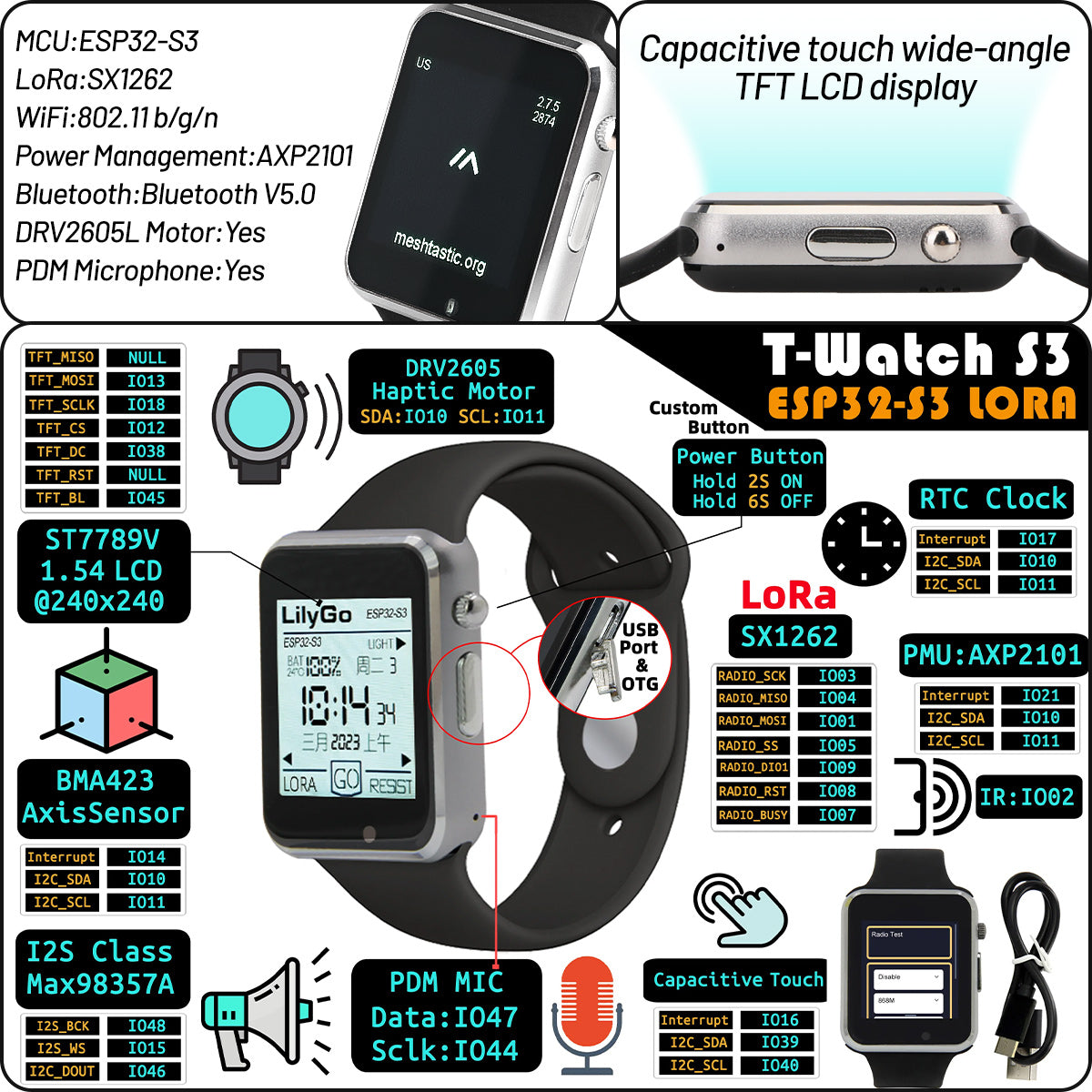

Core Microcontroller & Memory:

ESP32-S3 dual-core (240MHz) with 16MB Flash and 8MB PSRAM for powerful wearable/IoT project performance.

Display & Touch:

1.54-inch ST7789V TFT LCD (240×240) for clear visuals and user interfaces.

FT63X6/FT6336 capacitive touch panel for smooth, responsive interaction.

Wireless Connectivity:

Wi-Fi 802.11 b/g/n (2.4GHz) and BLE 5.0 for internet access and low-power Bluetooth pairing.

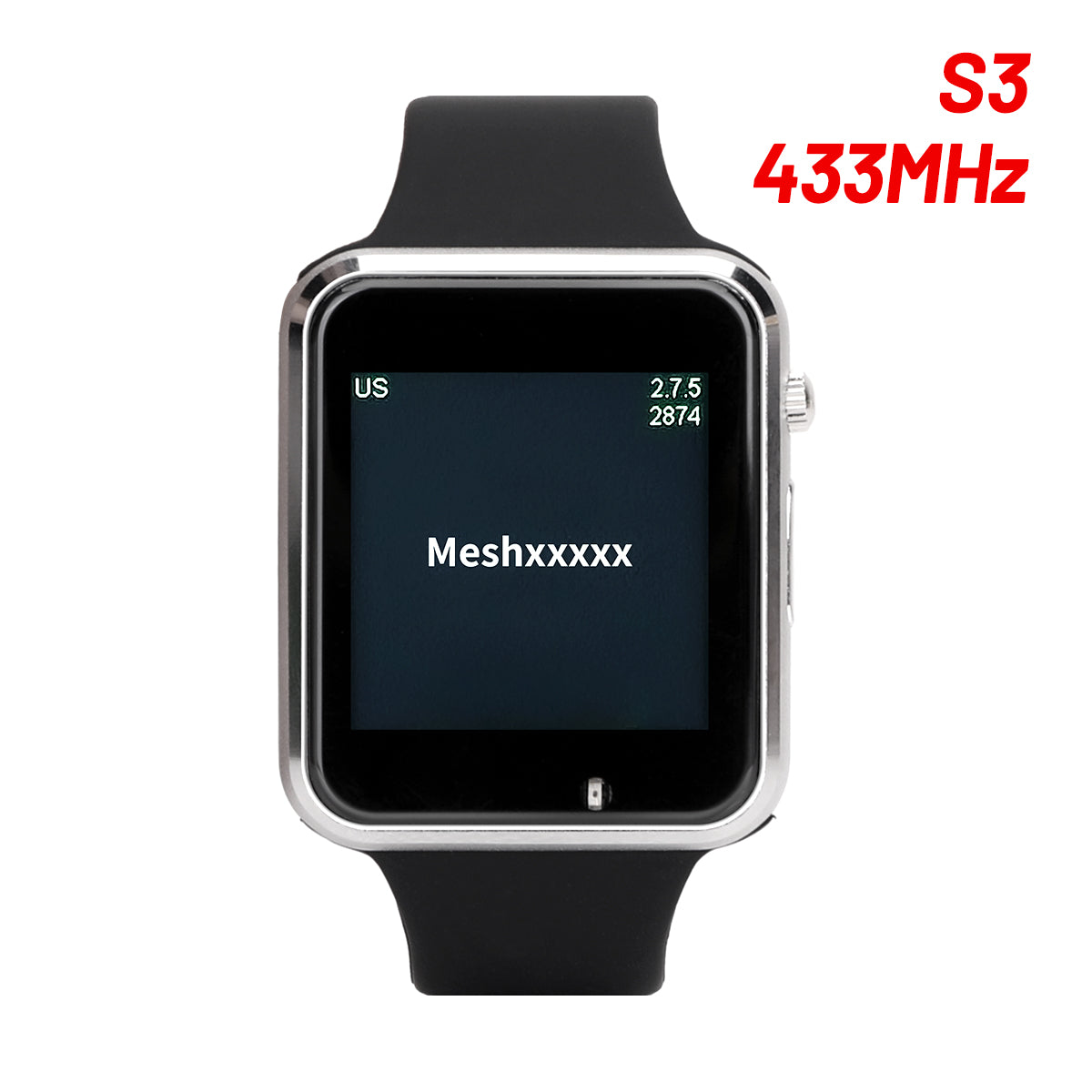

Built-in SX1262 LoRa transceiver (433/868/915MHz) for long-range IoT/outdoor communication.

 U.FL/Ipex antenna connector for stable LoRa signal transmission.

Power Management & Battery

AXP2101 PMU for precise power control, charging management and low-power optimization.

3.7V 400mAh rechargeable LiPo battery with power detection for long standby.

RTC and deep sleep mode to reduce power consumption during inactivity.

Sensors & Haptic Feedback

BMA423 3-axis accelerometer for step counting, motion detection and gestures.

DRV2605 haptic motor for rich tactile feedback (notifications, touch responses).

Multimedia & Peripherals

MAX98357A amplifier, speaker and PDM microphone for audio playback/recording.

Supports UART/SPI/I2C/I2S for easy connection with external expansion modules.

Micro-USB port for firmware upload, data transmission and charging.

Open-Source & Development-Friendly

Open-source, compatible with Arduino IDE, ESP-IDF, VS Code and MicroPython.

Abundant GitHub resources (sample codes, libraries) for quick project development.

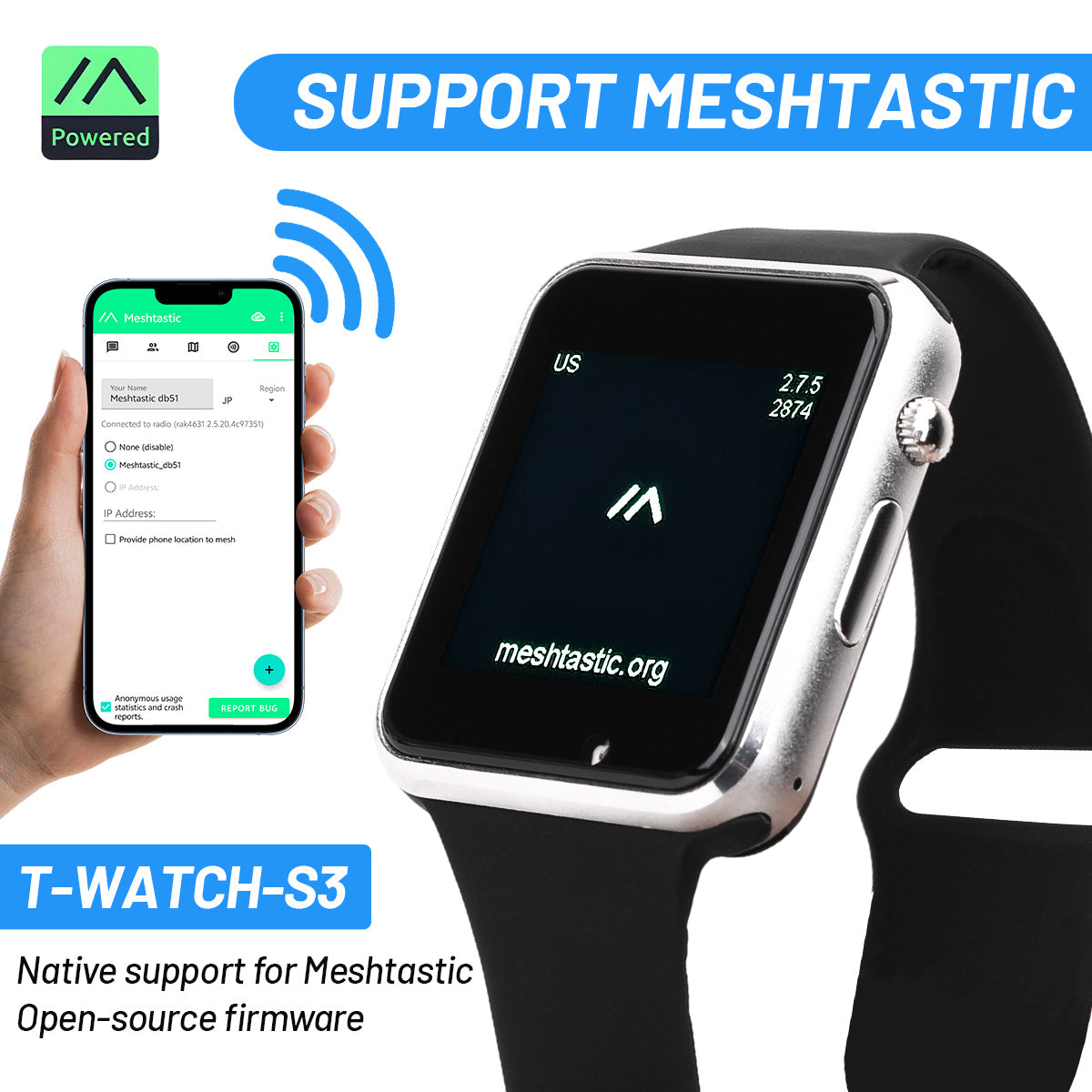

Supports Meshtastic protocol for outdoor communication, tracking and STEM education.

Design & Additional Features

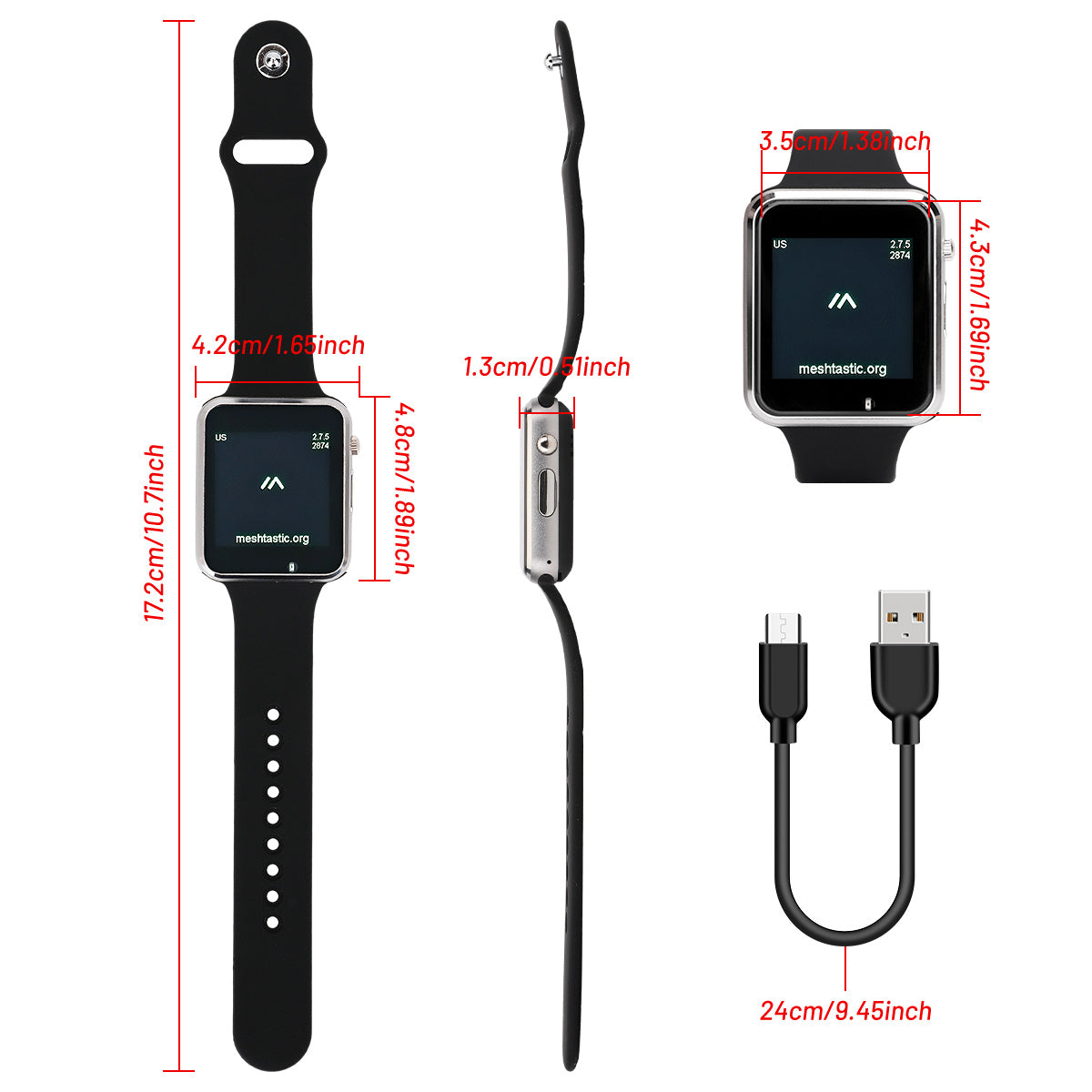

Compact, lightweight wearable design (silver, gunmetal color options).

Power button for easy control; safe GPIO pin usage with clear guidelines.

Why Choose LILYGO T-Watch S3? (Focus on Meshtastic)

The LILYGO T-Watch S3 is ideal for enthusiasts, makers and outdoor users, especially with Meshtastic—a decentralized, off-grid LoRa mesh protocol for long-range, low-power communication without cellular/Wi-Fi. Its hardware and seamless Meshtastic compatibility solve off-grid communication pain points better than other devices.

1. Built-in LoRa Hardware: The Foundation for Reliable Meshtastic Connectivity

Unlike most Meshtastic devices needing external LoRa modules, the T-Watch S3 has a built-in Semtech SX1262 LoRa transceiver (433/868/915MHz) and U.FL antenna for stable transmission. It stays compact while delivering Meshtastic’s long-range mesh communication (2–5 km line-of-sight), with its ESP32-S3 dual-core processor ensuring smooth operation.

2. Wearable Design: Meshtastic Communication at Your Wrist

Most Meshtastic devices (e.g., T-Beam) are bulky and unwearable. The T-Watch S3’s compact, wearable design with a 1.54-inch touchscreen lets you send/receive Meshtastic messages, share locations and monitor the mesh network from your wrist—perfect for hiking, camping or disaster scenarios without extra gear.

3. Optimized Power Efficiency for All-Day Meshtastic Use

Meshtastic’s low-power design pairs with the T-Watch S3’s AXP2101 PMU, 400mAh LiPo battery, RTC and deep sleep mode to minimize power use. This supports all-day off-grid Meshtastic use, a key advantage for outdoor or emergency situations.

4. Open-Source Synergy: Customize Meshtastic to Your Needs

Both the T-Watch S3 and Meshtastic are open-source. Compatible with Arduino IDE, ESP-IDF, VS Code and MicroPython, it offers GitHub resources to customize Meshtastic—adjusting LoRa power, saving battery or integrating sensors—ideal for makers and educators.
