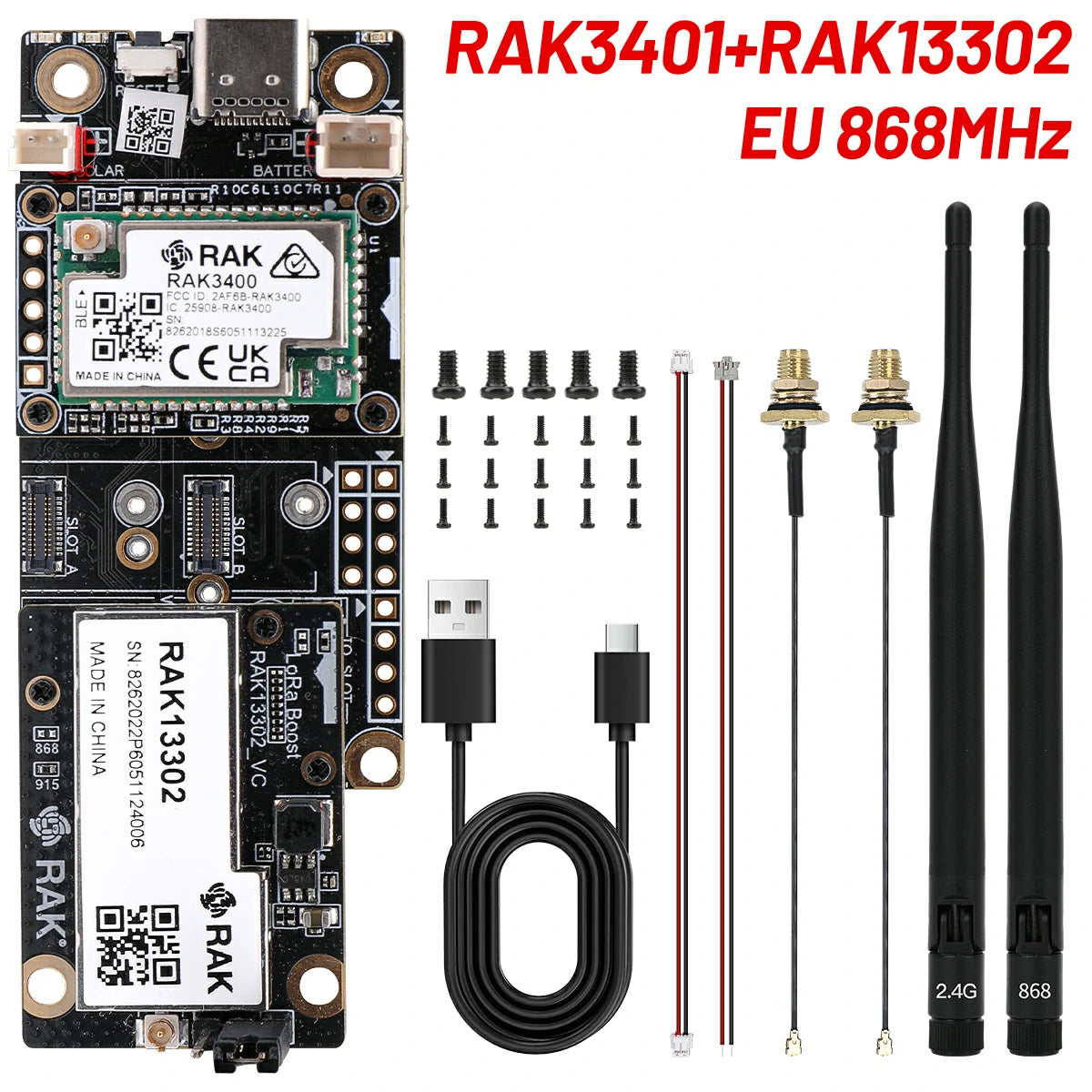

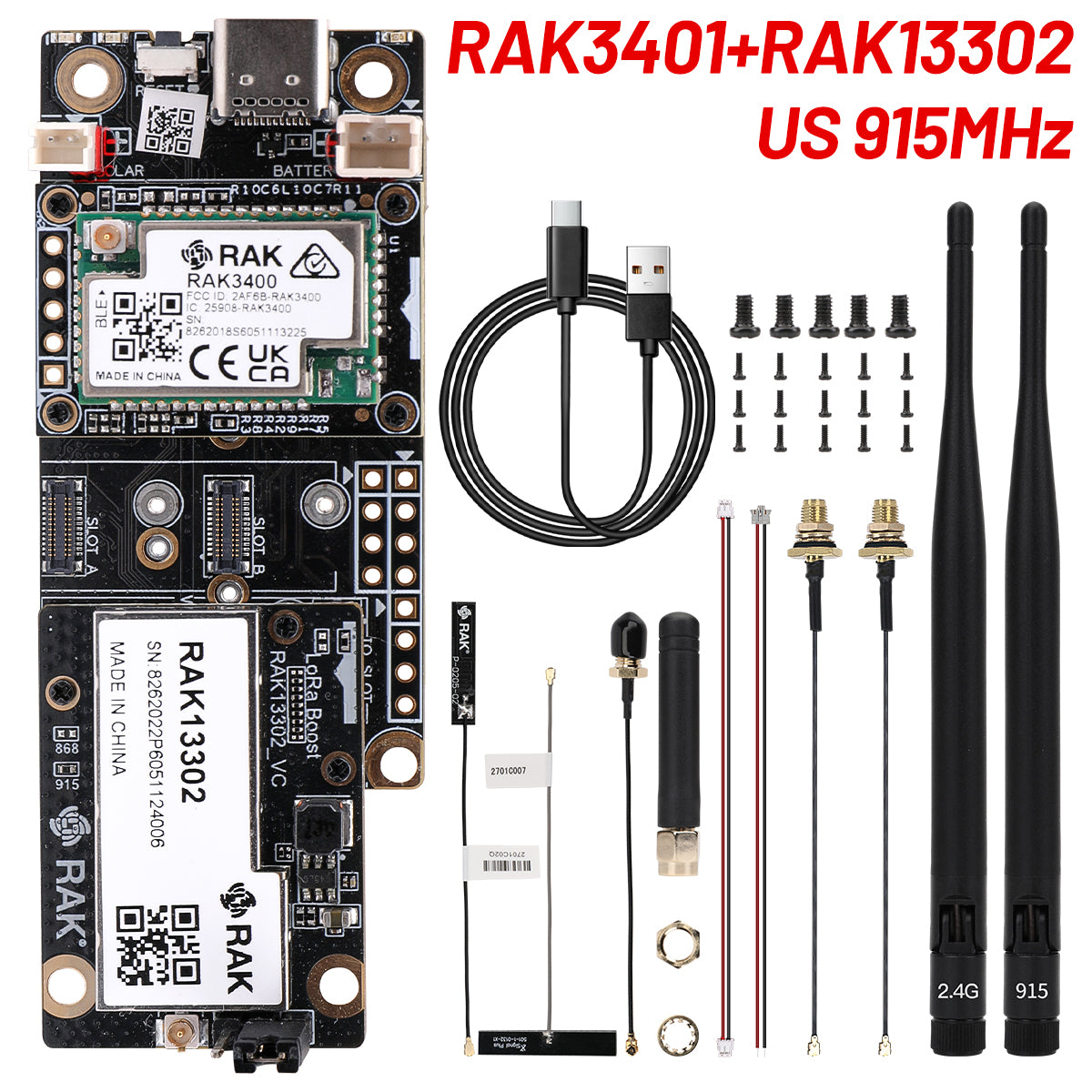

RAKwireless WisMesh 1W High Power LoRa Booster Starter Kit with 30dBm PA Amplifier/Filter Compatible Meshtastic or Meshcore

What is Wismesh 1W Booster Meshtastic Kits?

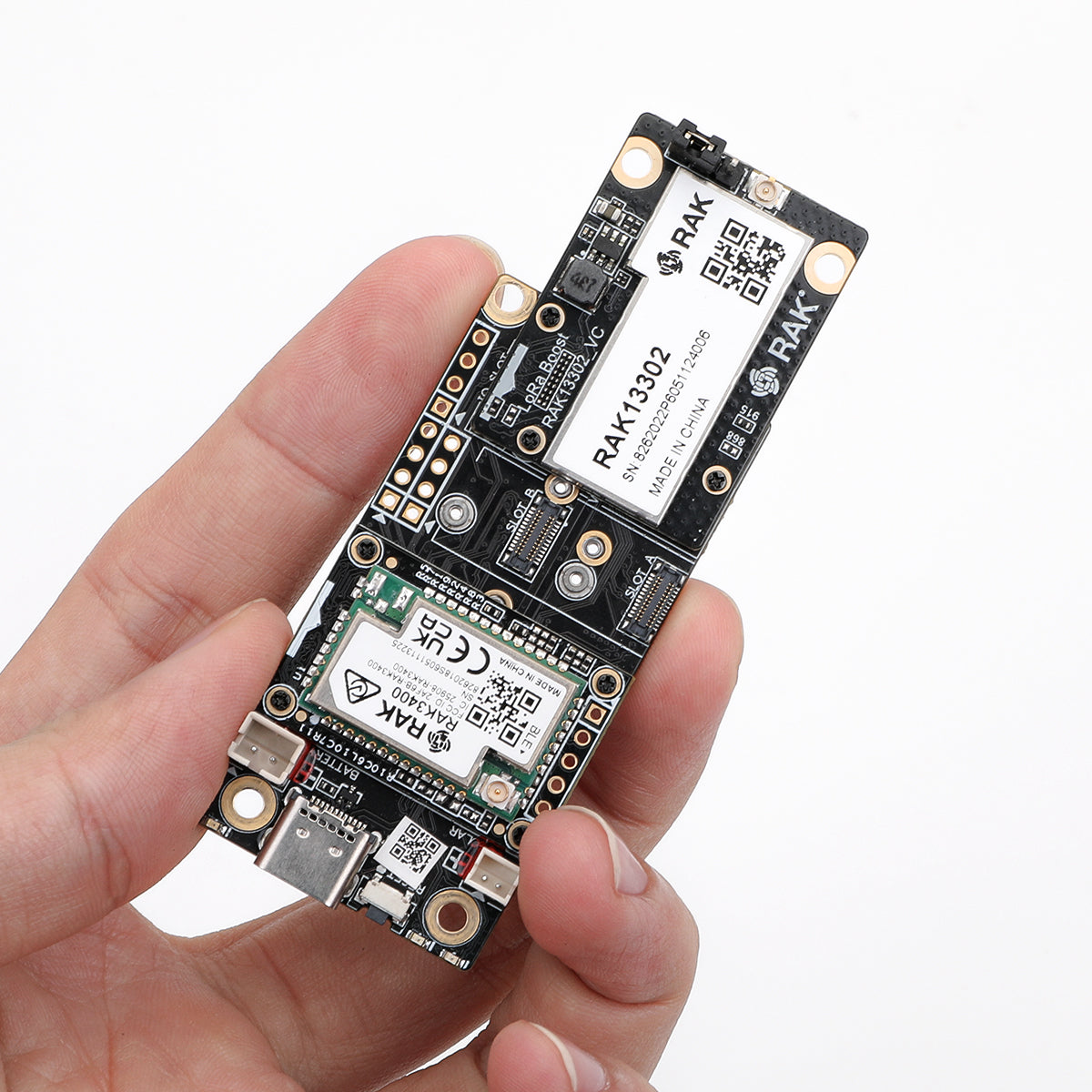

Wisblock 1W booster mesh kits combine with RAK19007 Base Board+RAK3401 nRF52840 core MCU+RAK13302 SX1262 LoRa module+SKY66122 1w Amplifier 30dBm+SAW Filter.

Compare with others normal Mesh LoRa module kits.The Wismesh 1w booster Starter kits is higher power in 30dBM,it offer bigger range in more then 10KM for LoRa transceiver with 2dBi Antenna.Although it has high transmission power,but power consumption is very low(7.63uA only),since it come without the Screen.perfect for Solar Mesh Repeater,it's best solution for Meshtastic or Meshcore booster repeater.

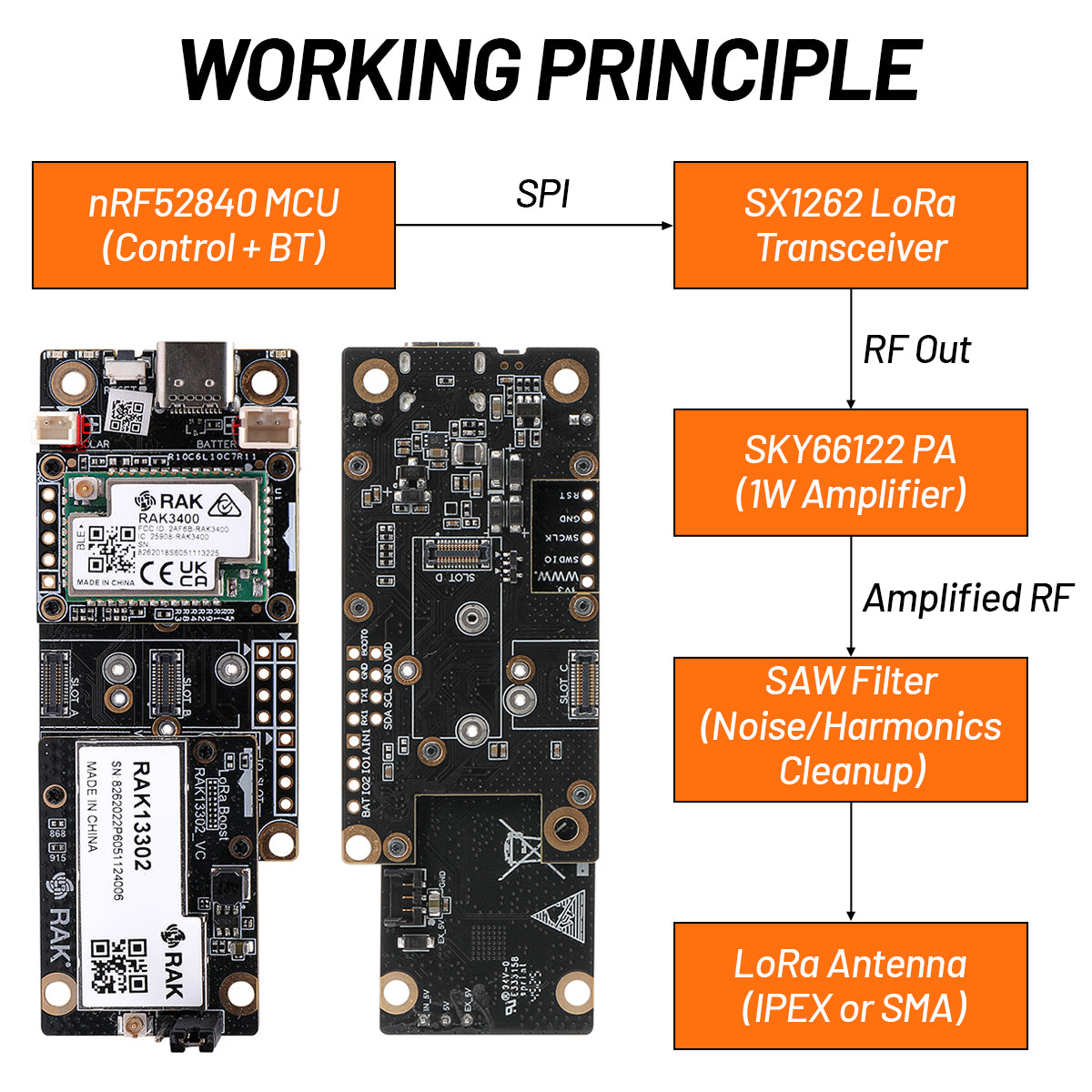

How wismesh 1W booster Kits working?

1. nRF52840 MCU (Control + Bluetooth)

  This component is the main control unit and Bluetooth communication.

2. SX1262 LoRa Transceiver

  This transceiver is responsible for LoRa (Long Range) communication. It connects to the MCU via SPI and transmits/receives data wirelessly.

3. SKY66122 PA (1W Amplifier)

The power amplifier (PA) boosts the radio frequency (RF) signal, increasing its transmission power to 1 watt.

4. SAW Filter (Noise/Harmonics Cleanup)

A Surface Acoustic Wave (SAW) filter is used to filter out unwanted noise and harmonics from the signal to ensure cleaner transmission.

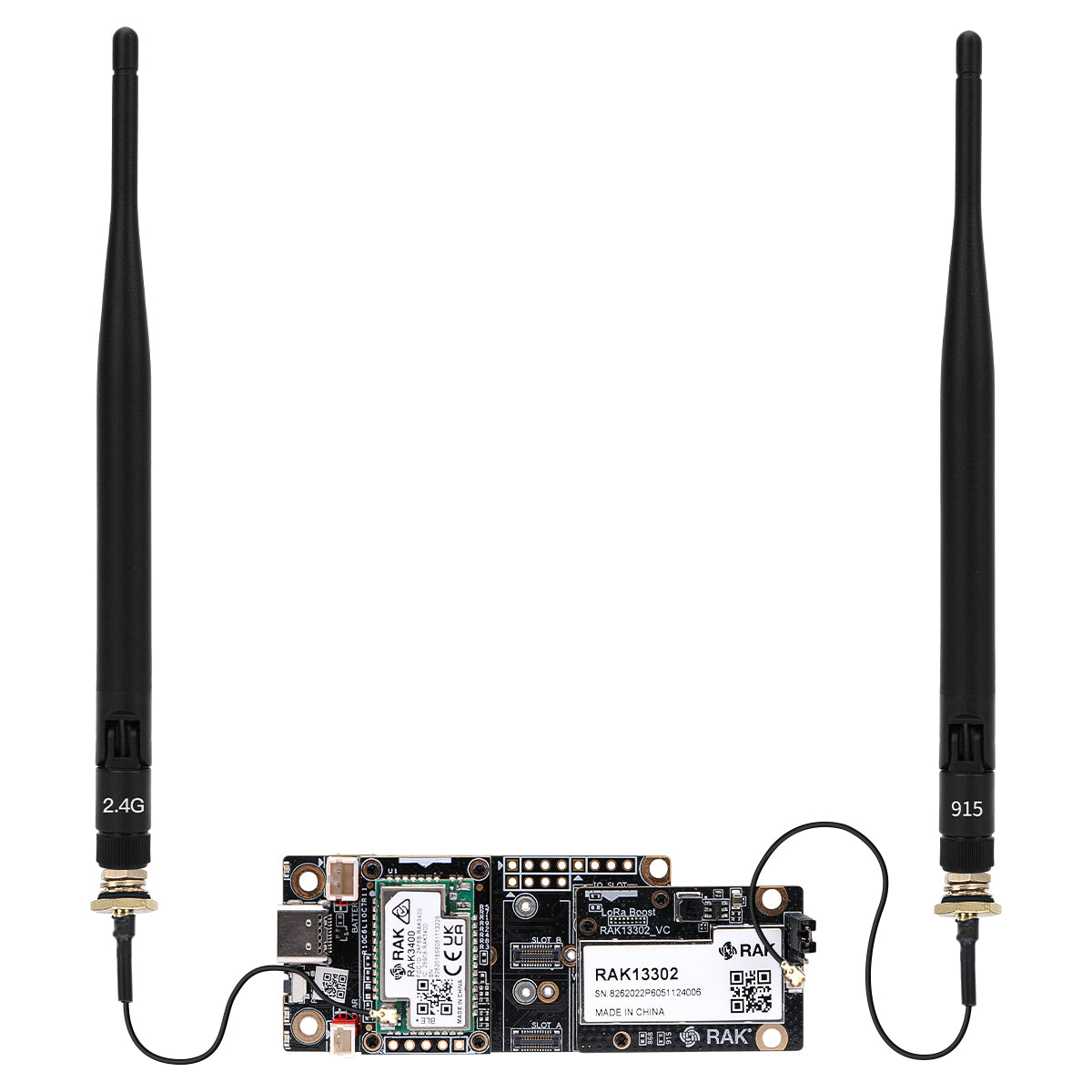

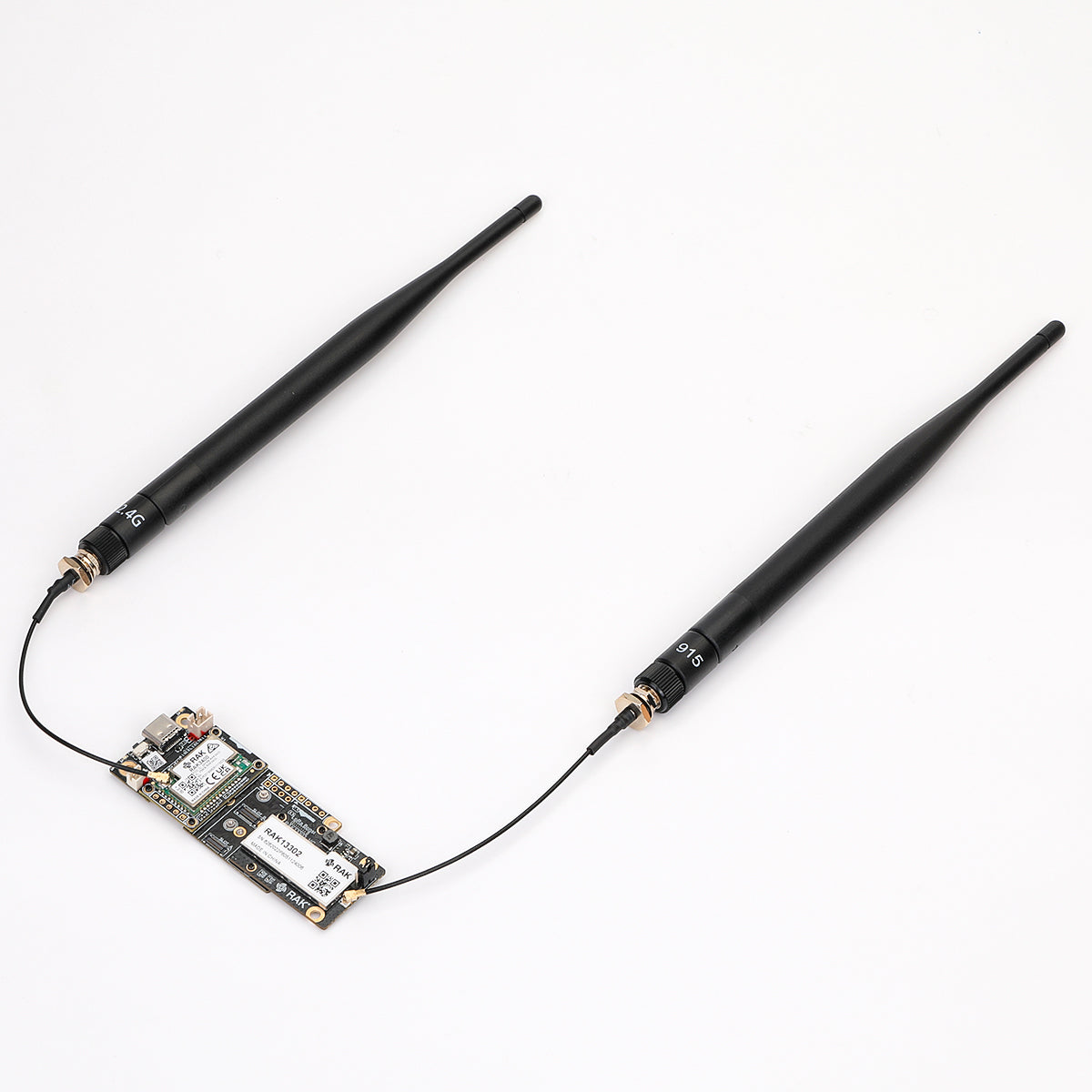

5. LoRa Antenna (IPEX or SMA)

The antenna transmits the final amplified RF signal. It can be connected via either IPEX or SMA connectors.

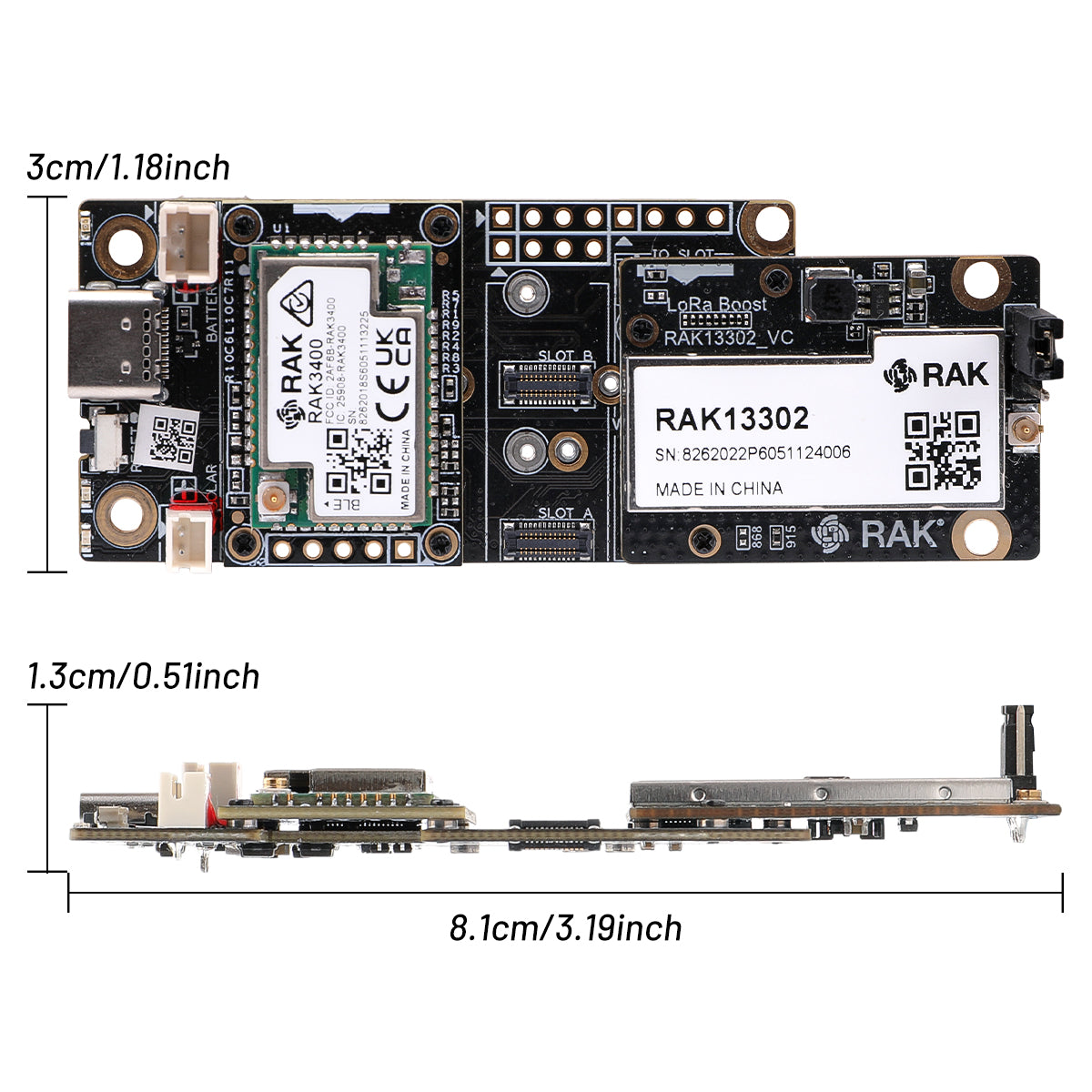

Feature:

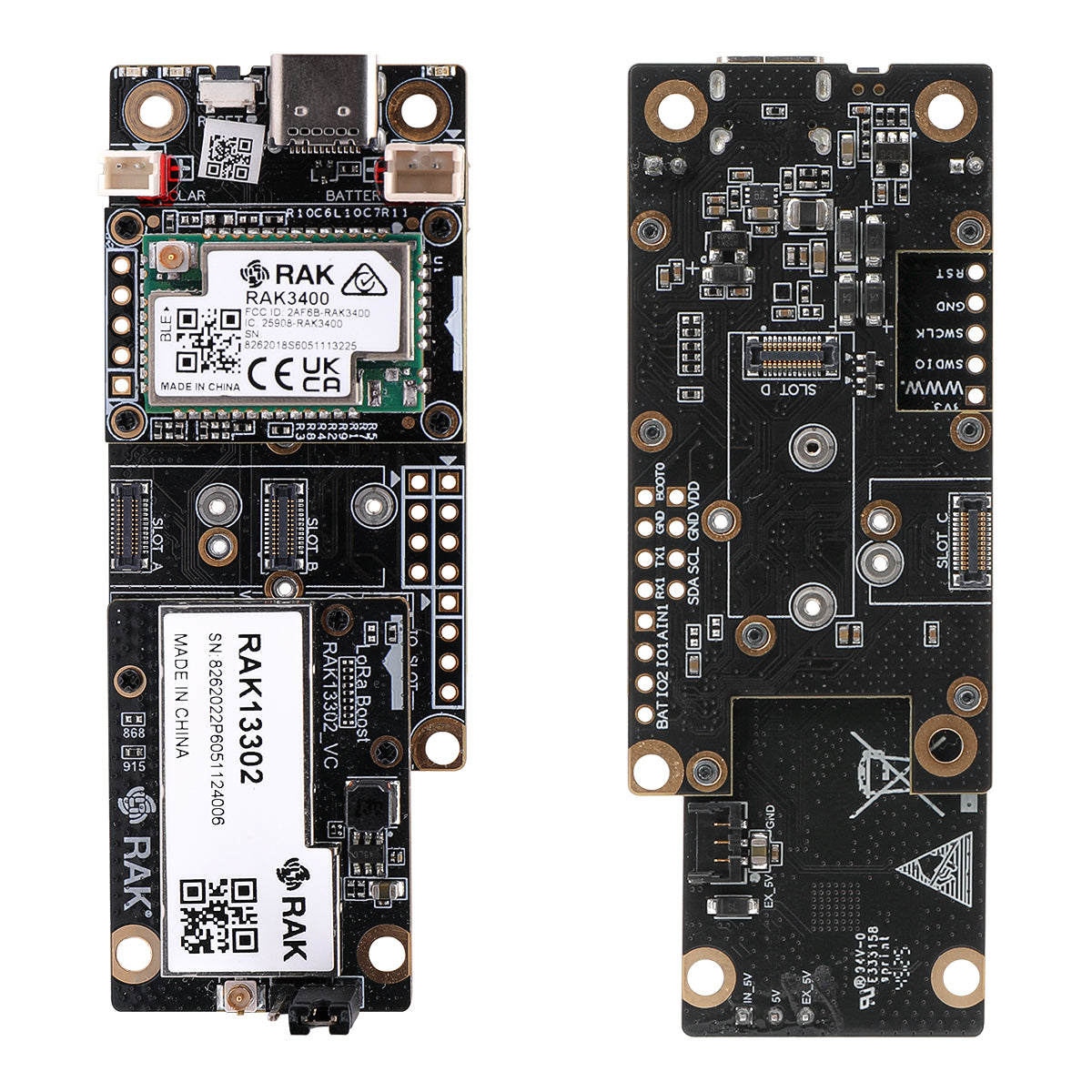

1)Wisblock RAK19007 Base develop Board

2)Wisblock RAK3401 Core module(nRF52840 MCU Bluetooth)

3)Newest Wisblock RAK13302 LoRa Module with SKY66122 1w Amplifier 30dBm

4)SAW filter to remove noise and harmonics

5)More then 10KM Stronger LoRa Range in longslow

6)7.63uA Ultra Low Power consumption

Firmware Flashing:Meshcore&Meshtastic

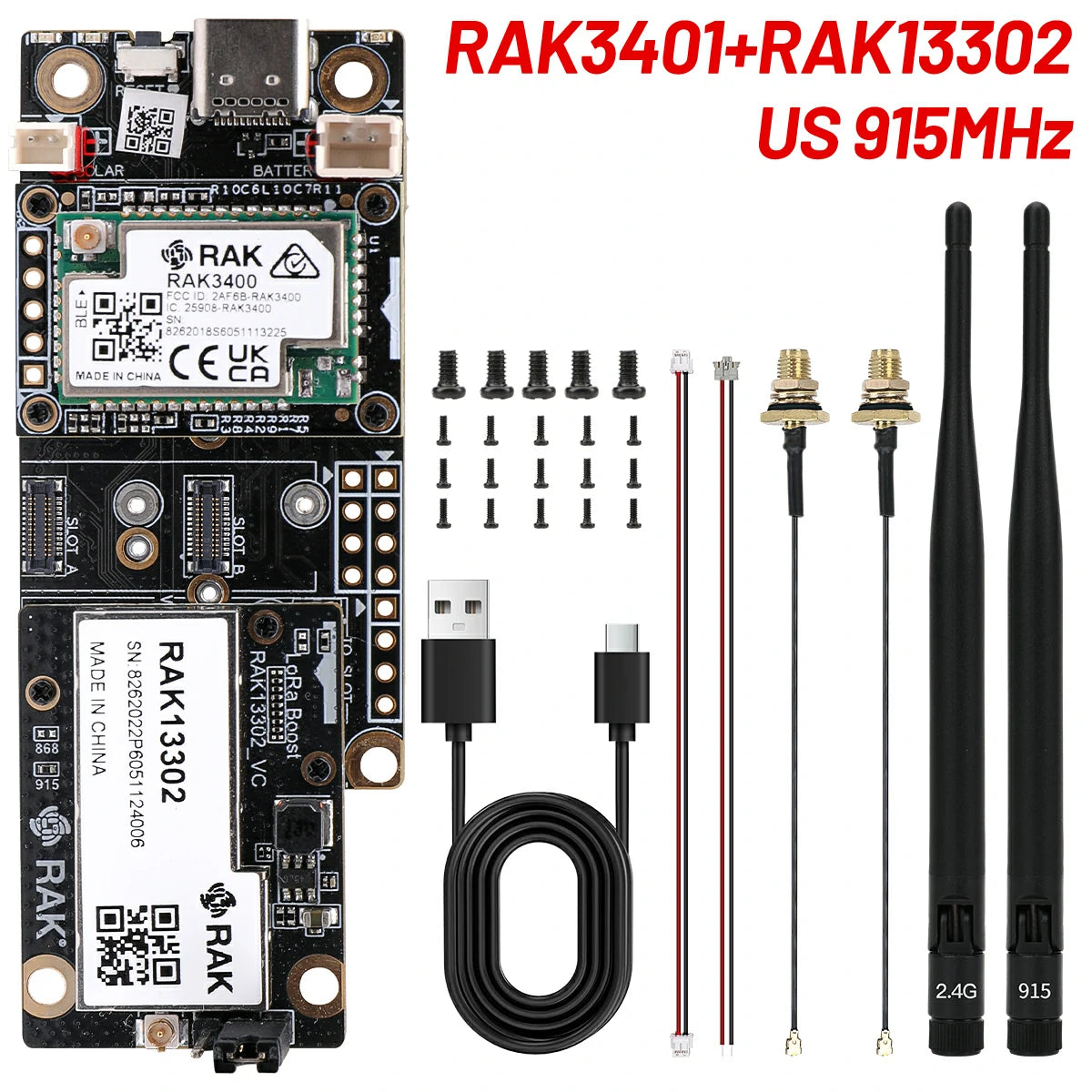

Specifiaction:

WisBlock RAK3401 Core module

Nordic nRF52840 MCU

ARM Cortex-M4F

1MB Flash and 348KB SRAM

I/O ports: UART/I2C/SPI/ADC/GPIO

WisBlock RAK13302 1W LoRa transceiver module

Semtech SX1262 LoRa transceiver

SKY66122 signal booster

Integrated RF filter for enhanced reception performance

IPEX antenna connector for LoRa

Support for 9xx MHz frequency band

RAK19007 WisBlock Base Board

4 sensor slots for WisBlock Sensor Modules

Supply voltage

5V over USB

5V over Solar Panel connector

Rechargeable battery
