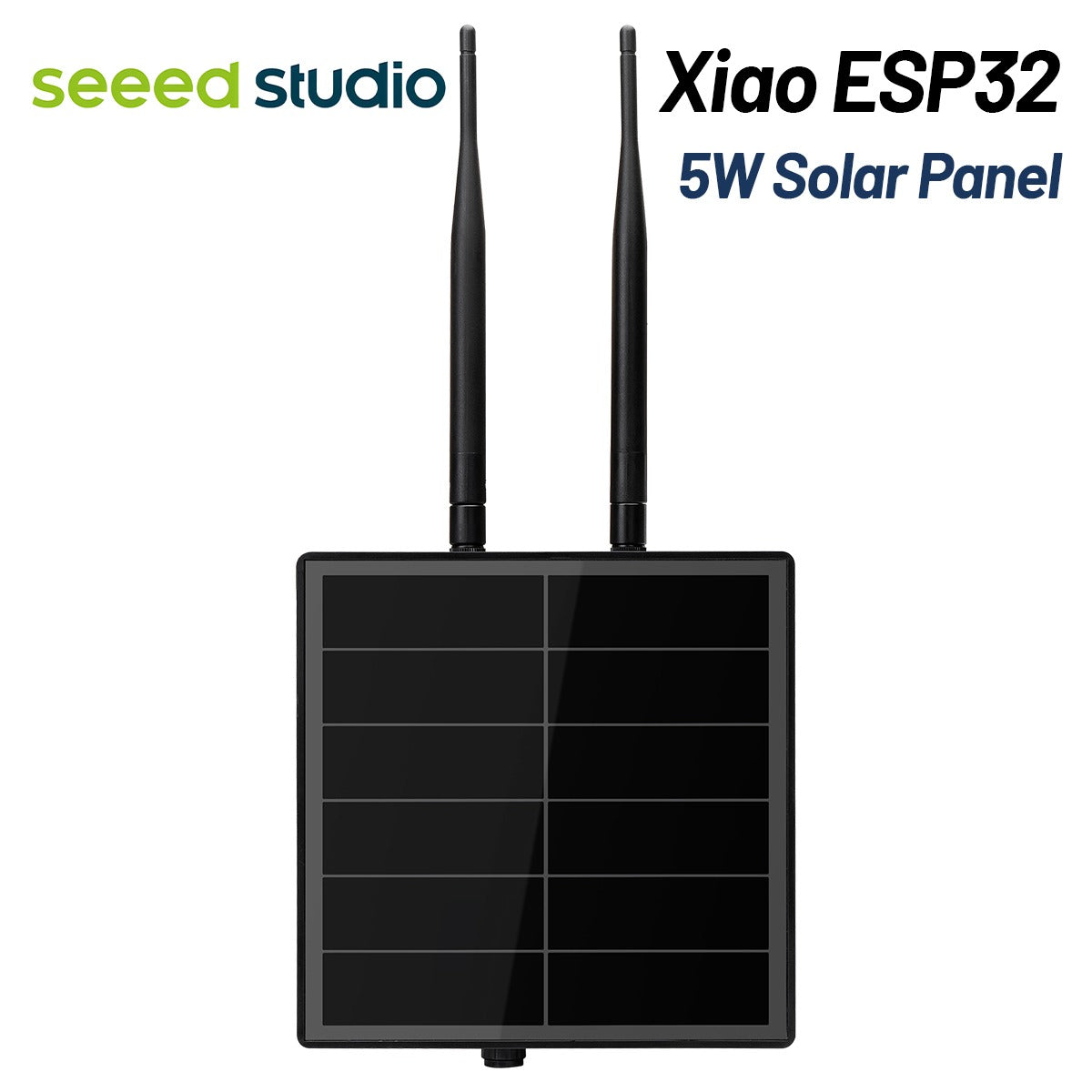

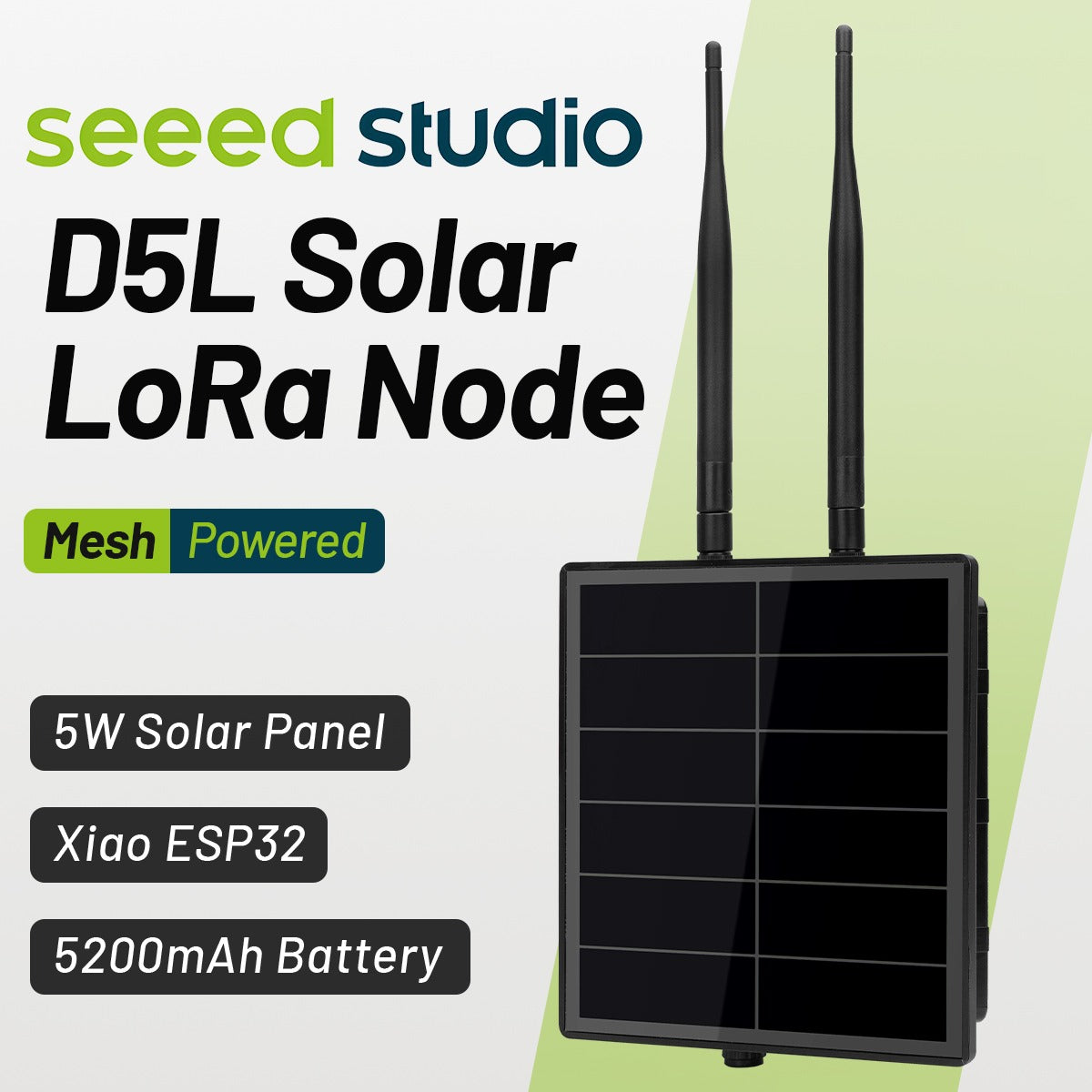

D5L-S2 Mesh Solar Repeater Node with Built in Seeedstudio Xiao ESP32 S3 WiFi BLE+SX1262 LoRa Boards Compatible Meshcore Meshtastic
- Regular price
- $95.80
- Sale price
- $95.80
- Regular price
-
Couldn't load pickup availability
Share
D5L-S2 Mesh Solar Repeater Node with Built in Seeedstudio Xiao ESP32 S3 WiFi BLE+SX1262 LoRa Boards Compatible Meshcore Meshtastic
Description:

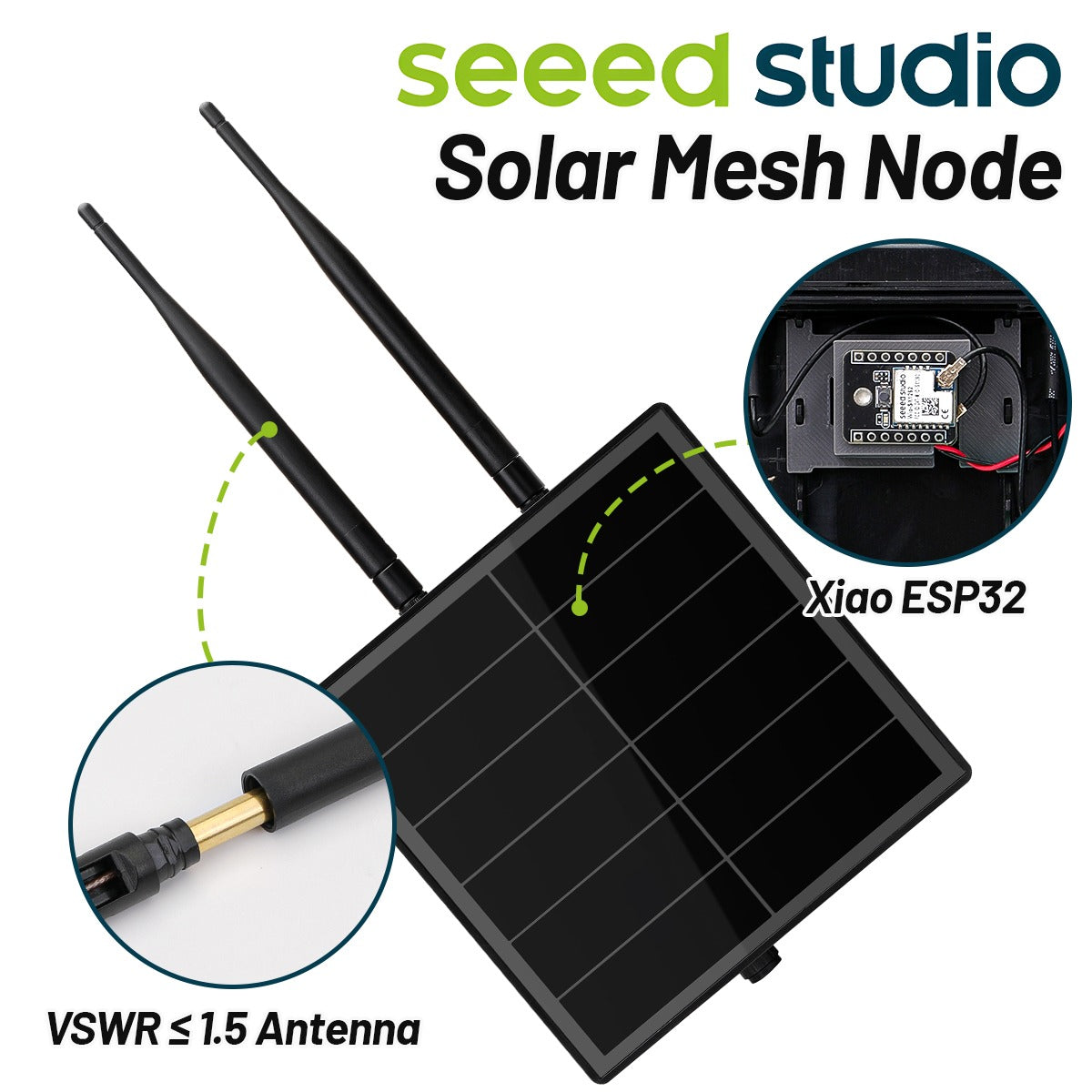

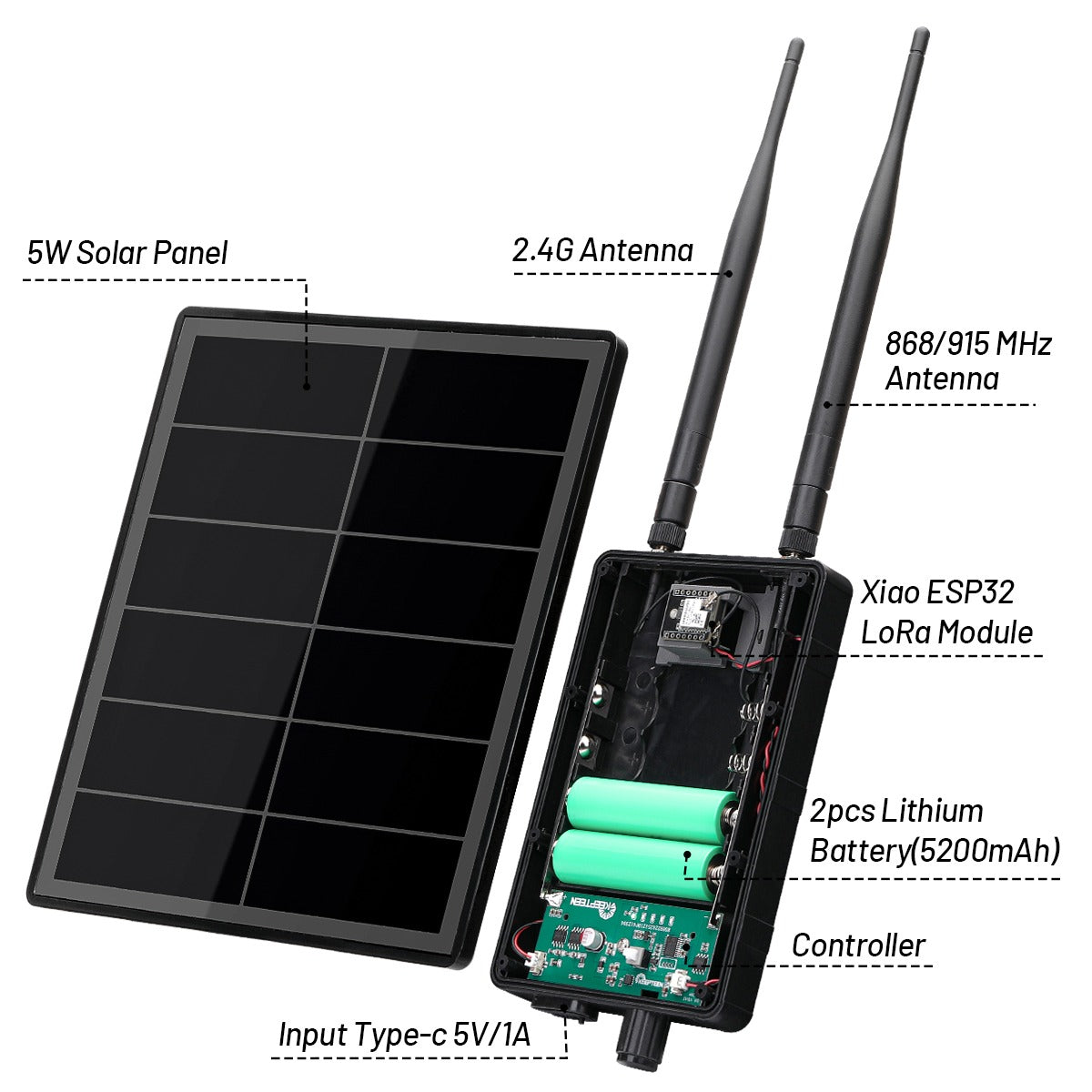

D5L-S2 is a complete solar mesh repeater,can be using as Wireless Solar WiFi extender also.it's compact KEEPTEEN D5 Solar controller system and SEEEDSTUDIO Xiao Series IoT modules board, convenience for meshtastic starter and meshcore starters, not need to purchase different accessories and DIY the solar nodes by themself, saving the time and money. D5L is an integrated solar charging system from KEEPTEEN company, built in with a 5.5W BC solar panel and battery management controller board. It can be used by installing 2 or 4 18650 batteries, outputting 3.7V or 5V, which can provide stable power to Seeed loRacommunication modules. We have also specially designed a fixed bracket for the Seeed xiao module, allowing it to be stably fixed inside the D5 battery case. The module supports flashing meshtastic and meshcore, great for meshtastic user or meshcore user.
Feature:
5w BC Solar Cell
Max 4pcs 18650 Battery(optional)
Built in 3.7v controller for LoRa Module

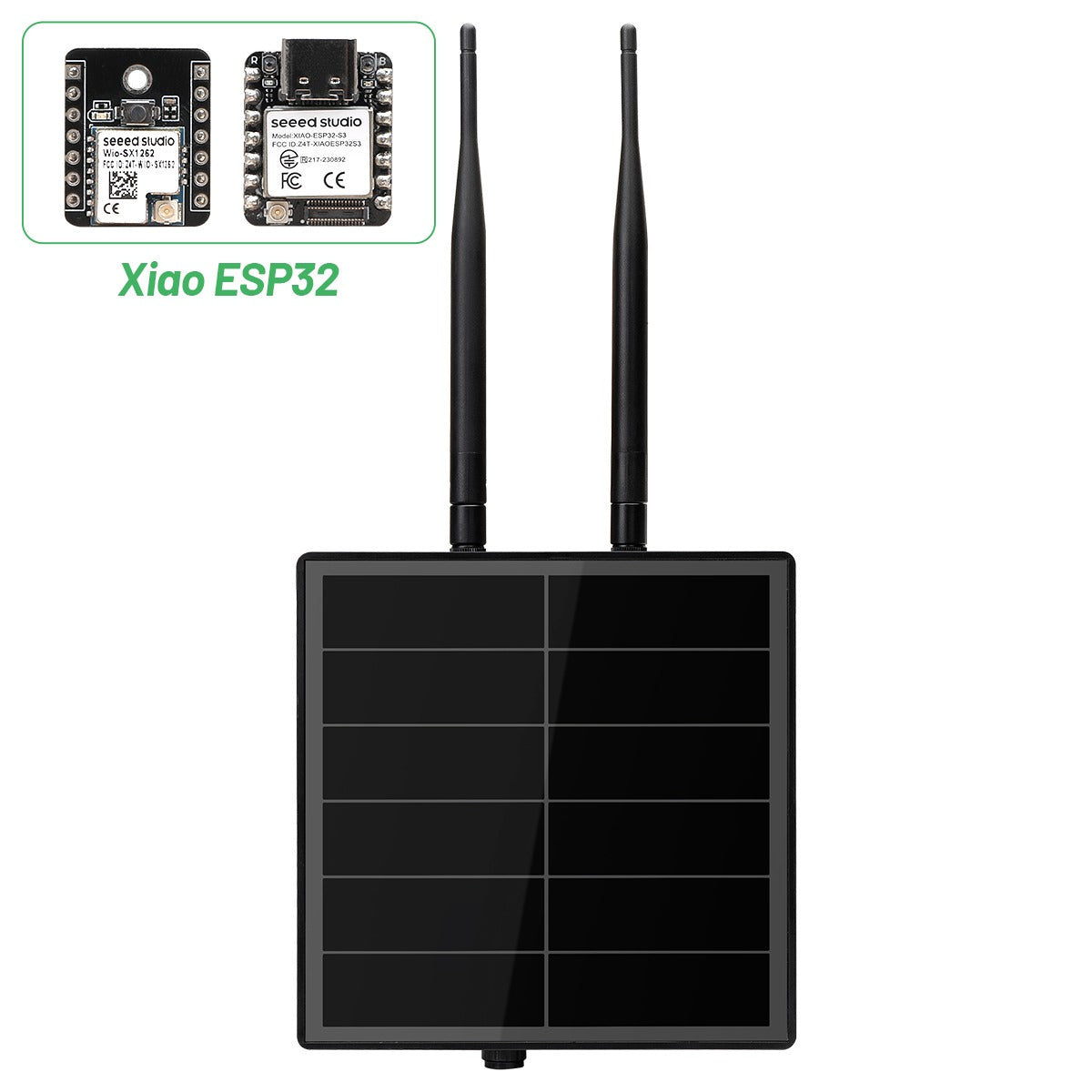

Seeedstudio Xiao EXP32 S3 WiFi Bluetooth MCU+SX1262 LoRa
2dBi Antenna(433MHz/868MHz/915MHz)
IP66 Waterproof Case
Specification:
| D5L-S2 Parameter | ||
| Firmware | Compatible | Meshtastic(official Register/Flashing) |
| Meshcore(official Register/Flashing) | ||
| LoRa Module | Module | Xiao ESP32 S3+SX1262 |
| MCU | Xiao ESP32 S3 WiFi Bluetooth+SX1262 LoRa | |
| Frequency | 915MHz/868MHz | |
| Display | No | |
| GPS | No | |
| Power Consumption | Sleep< 14 μA, Receive (RX)=25mA,Transmit (TX)=150mA | |
| Antenna | LoRa Antenna | 2DBi,915MHz/868MHz |
| 2.4G Antenna | Yes,2DBi | |
| Controller | Circuit Protection | Short circuit reverse connection protection |
| Overcharging protection at 4.25v | ||
| Discharging protection at 3.0V | ||
| Output | 3.7V from battery voltage(default) | |
| 5.0V from Controller(optional) | ||
| Solar System | Solar Power | 5.5W |
| Solar Panel | BC Solar | |
| Solar Material | Monocrystalline silicon | |
| Solar Surface | Tempering Glass | |
| Solar Size | 17.5x17.5cm | |
| Conversion efficiency | 24.30% | |
| Controller | Yes | |
| Output | 3.7V(5.0V optional) | |
| Battery | Battery Number | Max 4pcs 18650 battery |
| Battery Capacity | Max 12000mAh | |
| Battery Voltage | 3.7V | |
| Battery Combination | Parallel | |
| Battery Changeable | Yes | |
| Charging Time | DC Charge | 7-9 hours if Charging by Type C 5V/2A |
| Sun Charge | 15-18 hours if Charging by strong sunshine | |
| LED indicator | First Green Lamp | Charging status(Flashing mean working good) |
| Other Green Lamp | Power level | |
| Interface | Charging plug | Type C (default) |
| Output Plug | DC5.5x2.1mm(optional) | |
| Waterproof | IP66 Waterproof | |
| Installation | Wall Mount with 1/4 inch Screw | |
| Weight | New Weight | 0.6kg |
| Packing Weight | 0.9kg | |
| Size | Product Size | 17.7x17.7x3.5cm |
| Packing Size | 21x21x5.6cm | |

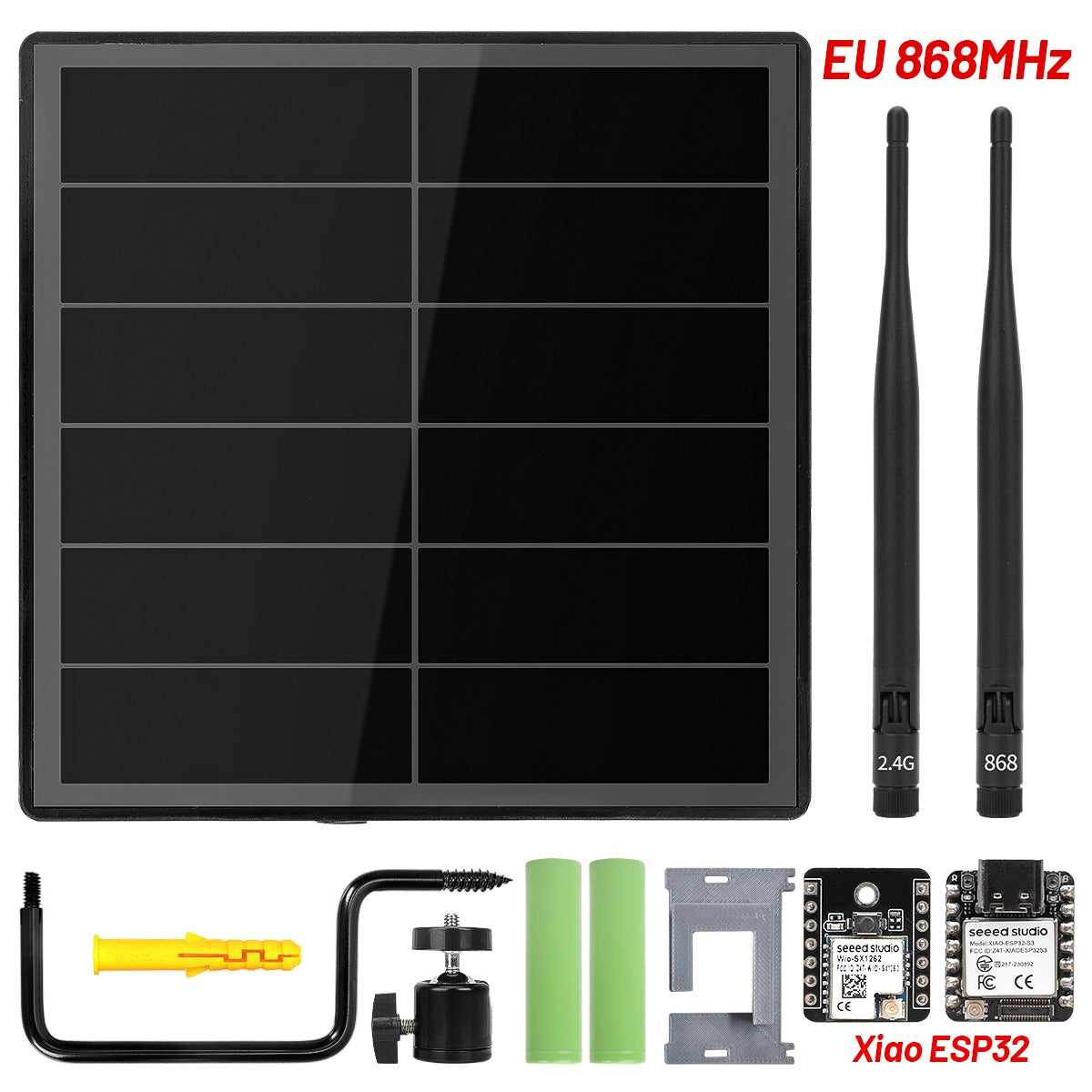

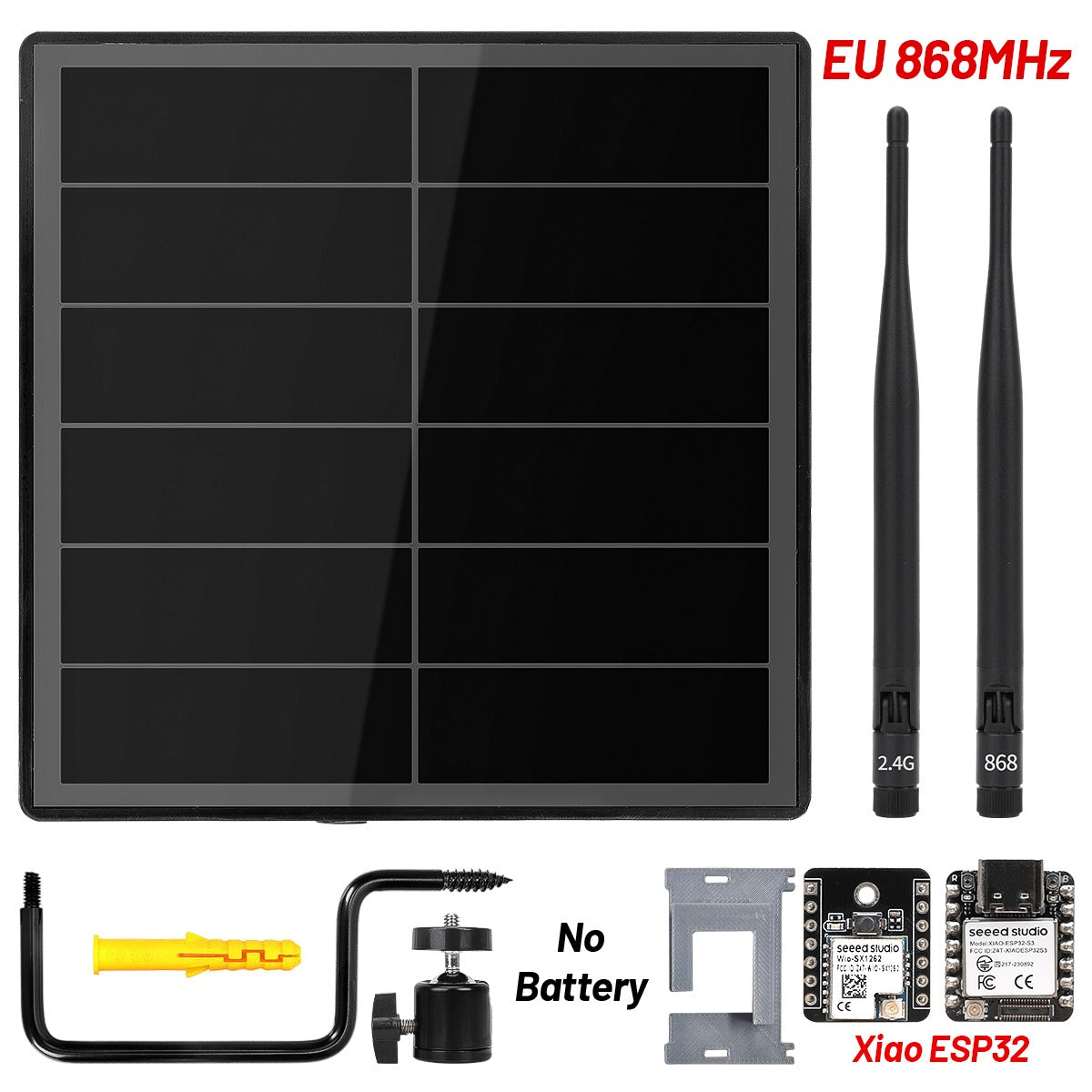

| Accessories | Solar x 1pc | |
| Mount system x 1pc | ||
| Bracket for LoRa Module x 1pc | ||
| 18650 battery(optional) | ||
| Certification | CE/FCC/RoHs | |
WHY CHOOSE US?
D5L‑S2 is a co-developed solar mesh node by SEEED Studio and KEEPTEEN. KEEPTEEN provides the full solar power system and enclosure, while it integrates SEEED Studio XIAO ESP32‑S3 (Bluetooth, Wi-Fi) + SX1262 LoRa module.It can be used as a wireless solar Wi-Fi/LoRa repeater, or as a solar mesh relay node by flashing Meshtastic or Meshcore firmware.
TWOPIGEON maintains deep cooperation with both companies above, covering R&D, production, and sales. All SEEED Studio modules sold on TWOPIGEON are genuine products and come with the same official after‑sales service. Please purchase with confidence.
