HP1 High Power LoRa Module Wismesh 1w Booster Starter Kits with 20w Solar Power System 6dBi Fiberglass antenna Mount

Description:

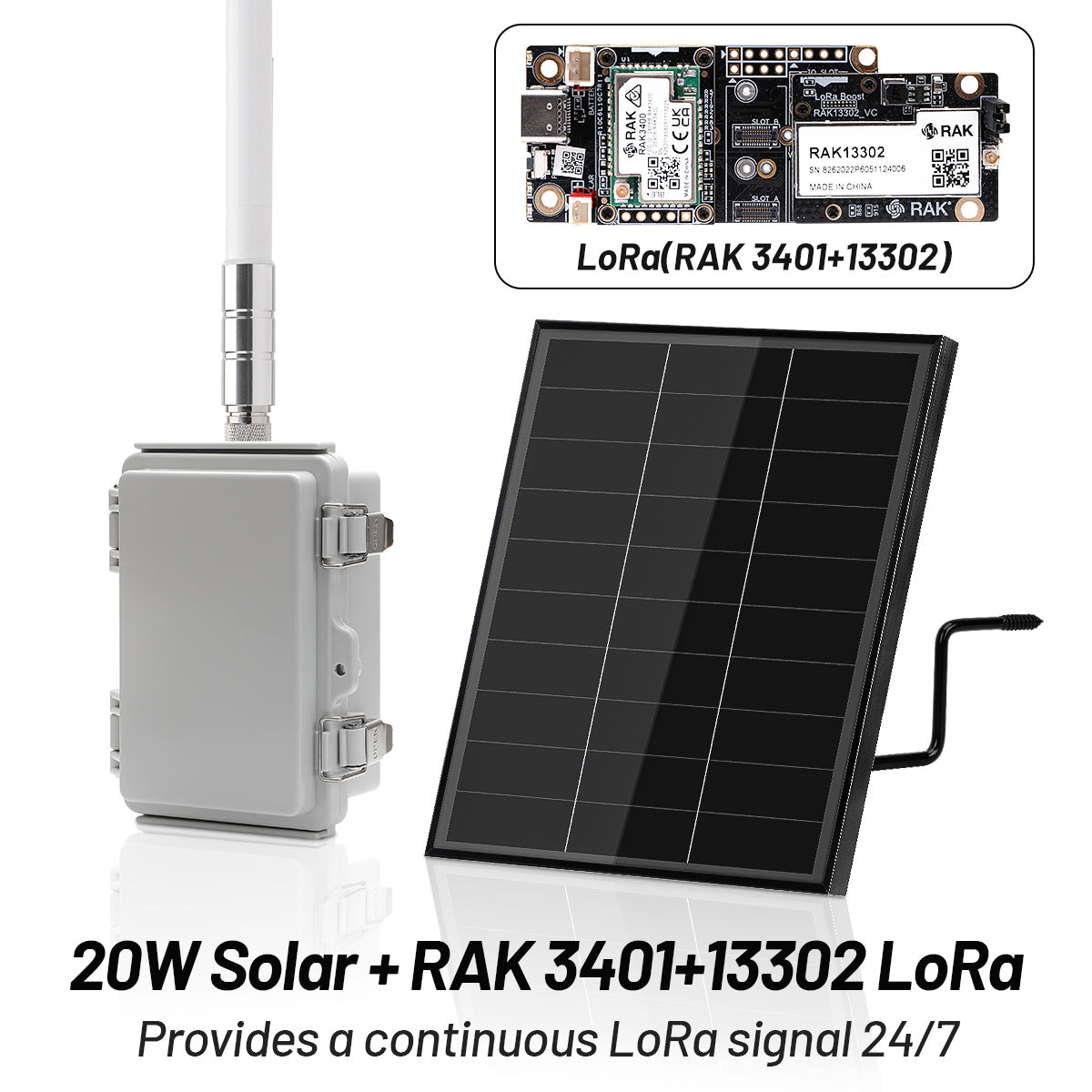

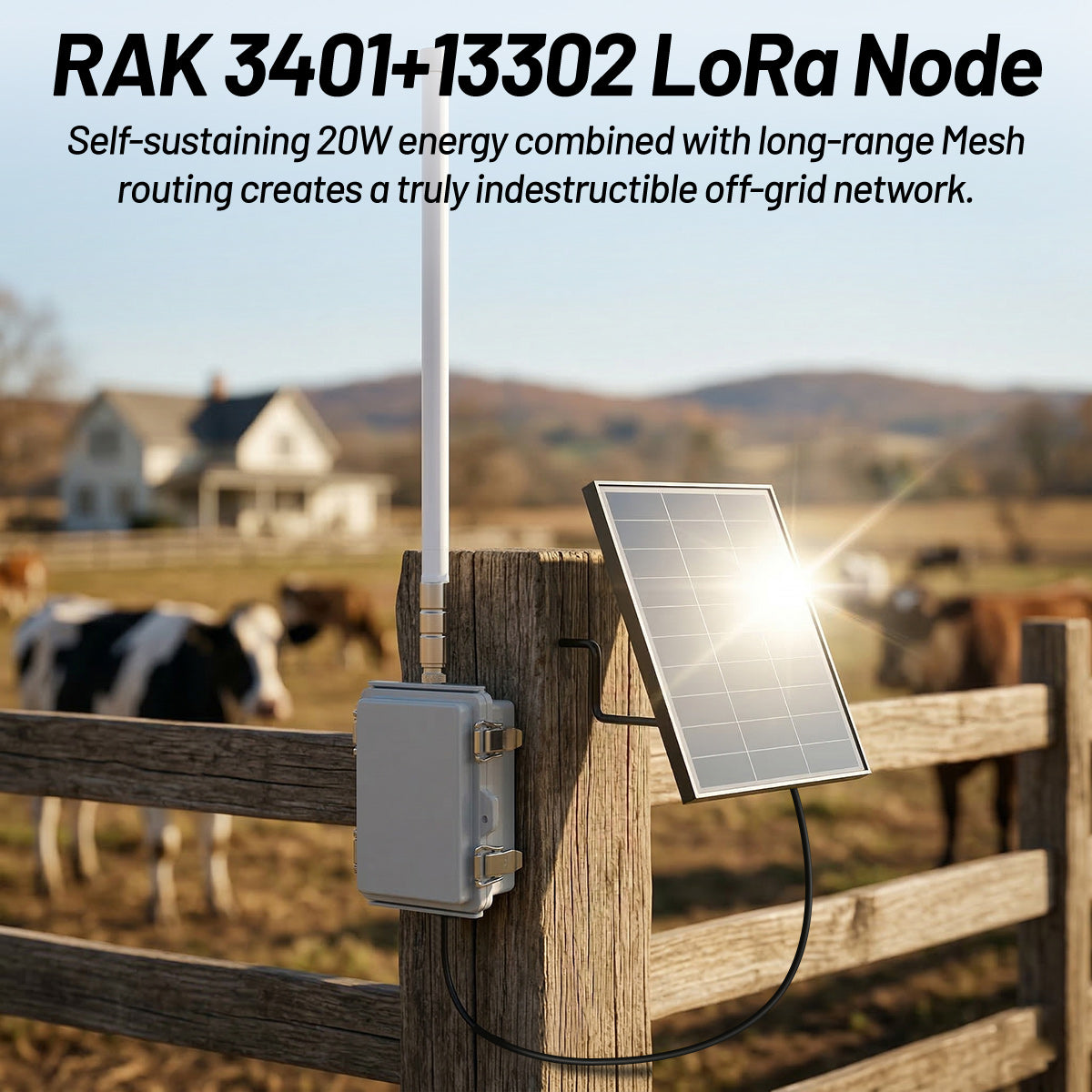

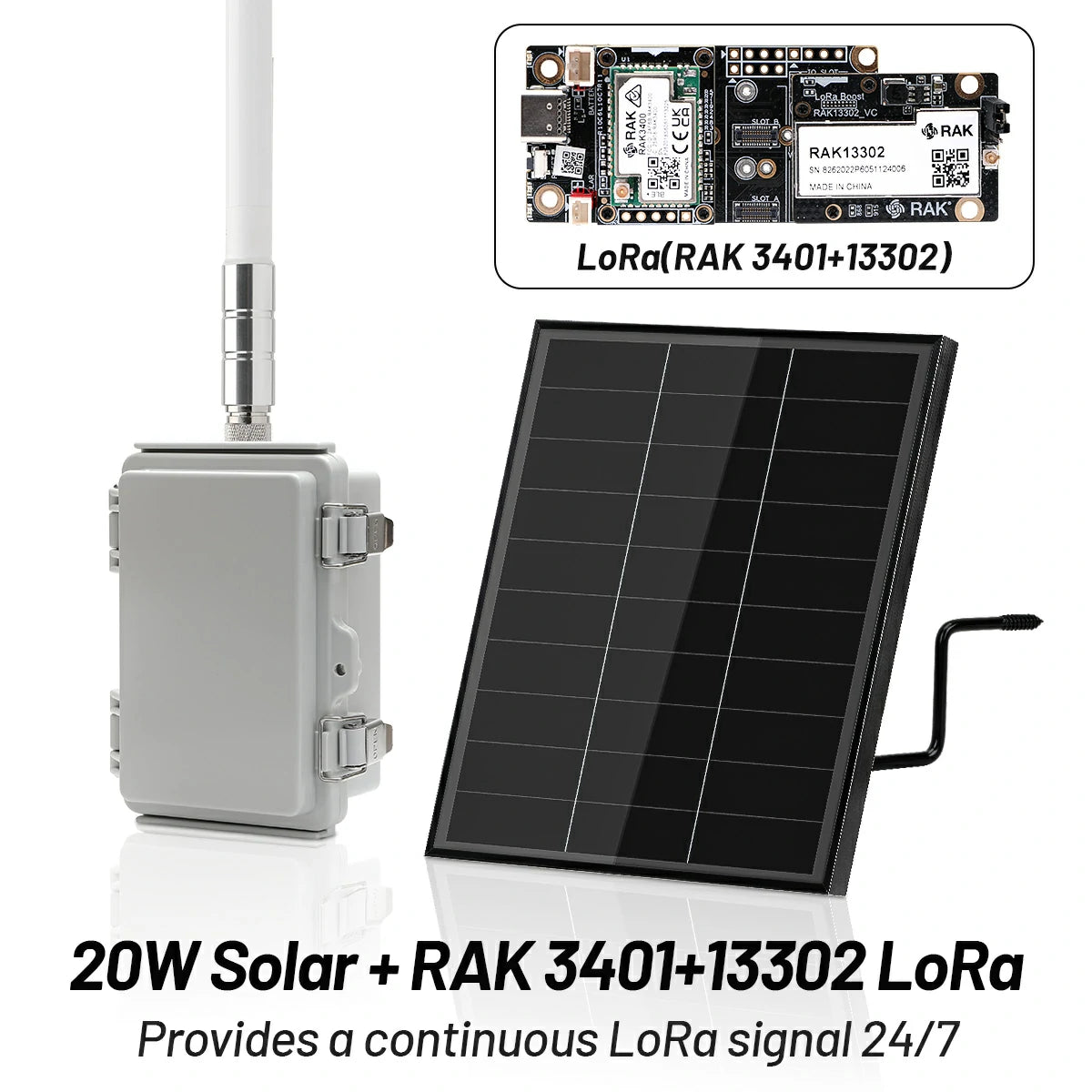

HP1 is the High Power Solar Node Repeater set,include Wismesh 1w booster kits,20w solar system,ip66 waterproof case,20000mAh+15600mAh battery+6dBi fiberglass antenna,support Flash Meshtastic&Meshcore.RAKWireless Wismesh 1w Booster is the High Power LoRa module,but it's too big power consumption compare with normal RAK19007+ RAK4631 lora modules,so we compact with the 20w solar system come with total 35600mAh battery,it's enough for Wismesh 1w keep working 24hours/7days.and the 6dBi antenna help to get a Max 10 kilometers LoRa Range as Mesh Repeater or Mesh Node.it's great for user if want to establish a enlarge mesh network.

Feature:

1)RAKWirelss Wismesh 1w booster Starter Kit(RAK19007 base board+RAK3401 core board+RAK13302 Booster)

2)IP66 Waterproof Case with sealing ring

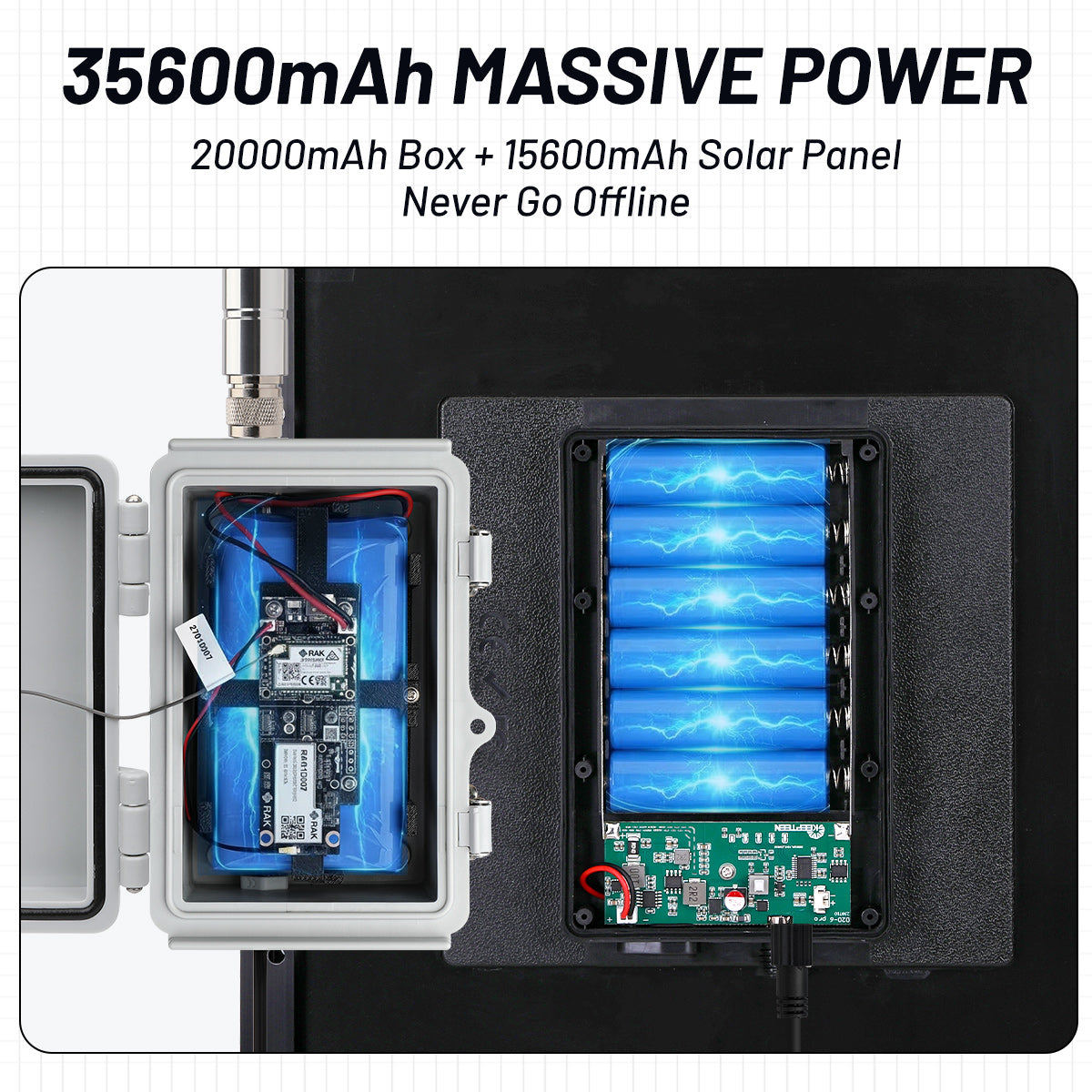

3)10pcs 18650 li battery,total 20000mAh.output 3.7v to 19007 base board.

4)20w BC solar system,built in MPPT/controller/15600mAh battery,output 5v to battery.

5)6dBi fiberglass 915MHz antenna(60cm+40cm cable)

6)include mount system.

Parameter:

D20 Solar Power Charger
LoRa	Functionality	BLE+Lora
	Module	WisBlock RAK19007+RAK3401+13302
	Chip	nRF52840+SX1262
	Frequency Range	915MHz

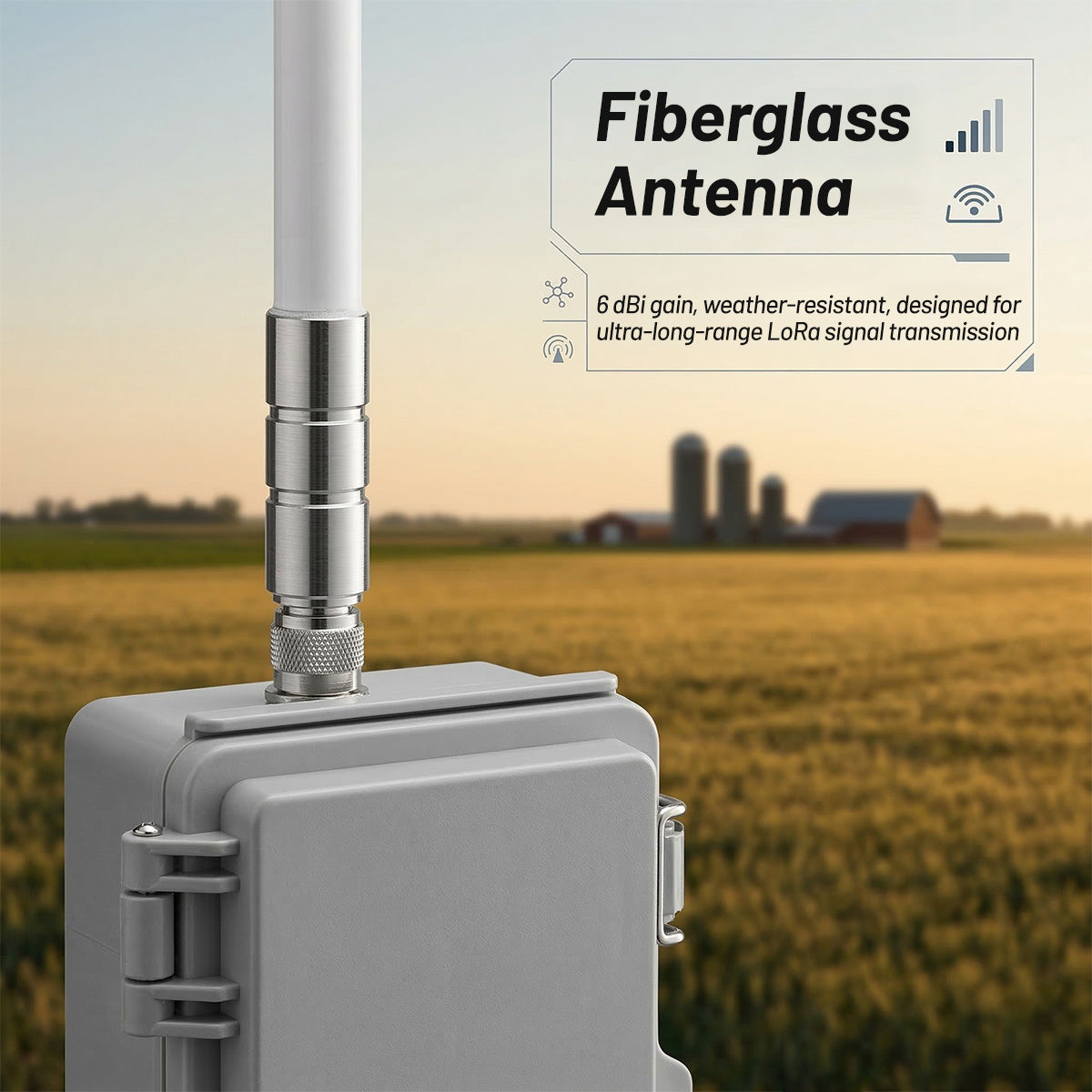

	Antenna	6dBi fiberglass
Solar Panel	PCE(conversion efficiency)	24%
	Working Power	20W
	Working Volt	Max 18V/1.2A
	Material	Monocrystalline silicon
	surface	Tempered glass

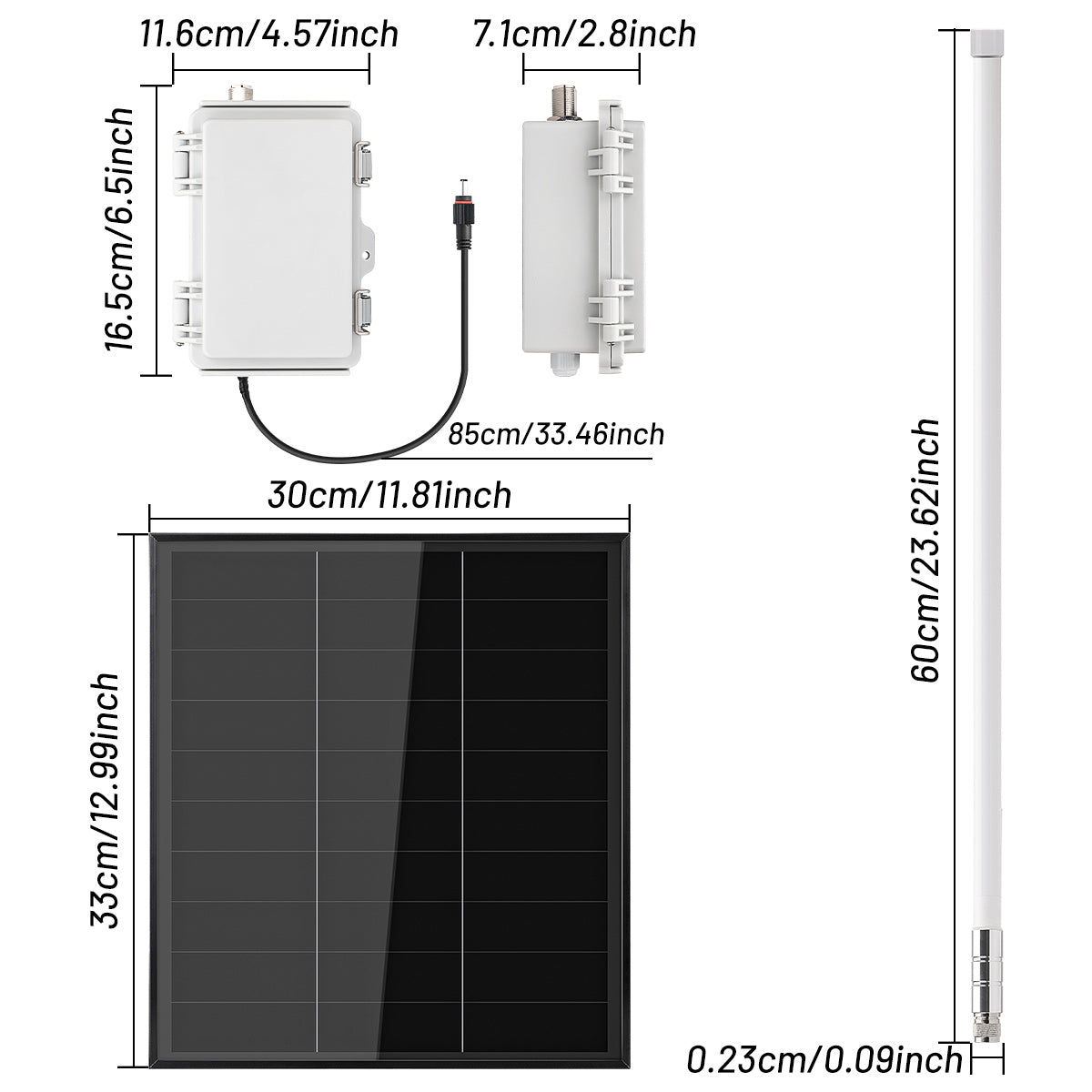

	Size	33x30cm
Battery	Battery Power	74+57.72 optional
	Battery Voltage	3.7V
	Capacity	20000mAh+15600mAh optional
	Circuit Combination	18650 batteries in parallel
Input	Charging Time	10-13 hours if charging by sunshine
Output	Output Voltage	Max 12v/1A(contact us if you want other output)
Circuit Protection	Yes	Short circuit reverse connection protection
		Overcharging protection
	Cable length	1M
Installation	1 kinds	Tree Mount
LED  indicator		indicator Power Capacity and Charging Status
Working Temperature		‘-20℃~60℃(-4℉~140℉)
Waterproof		IP66

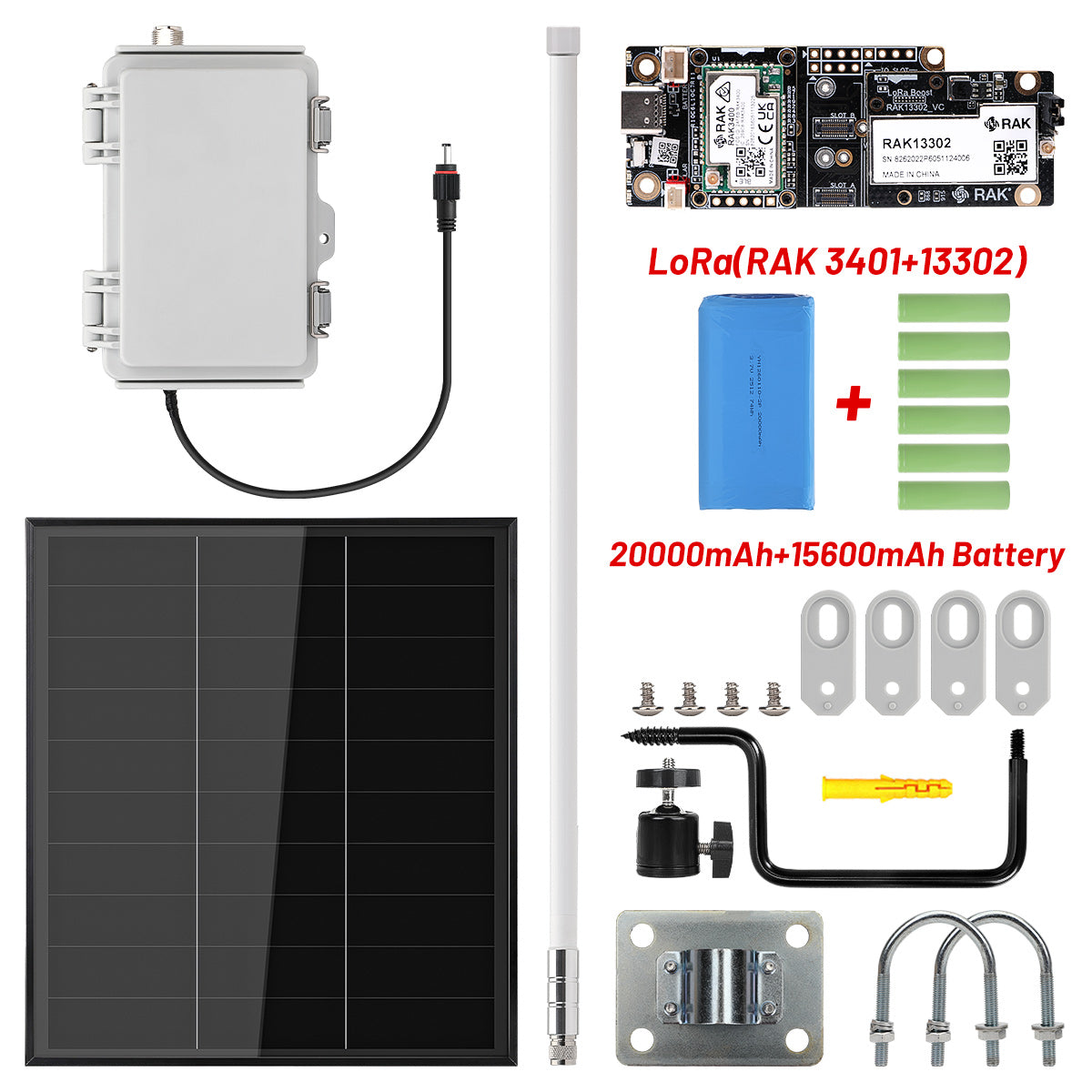

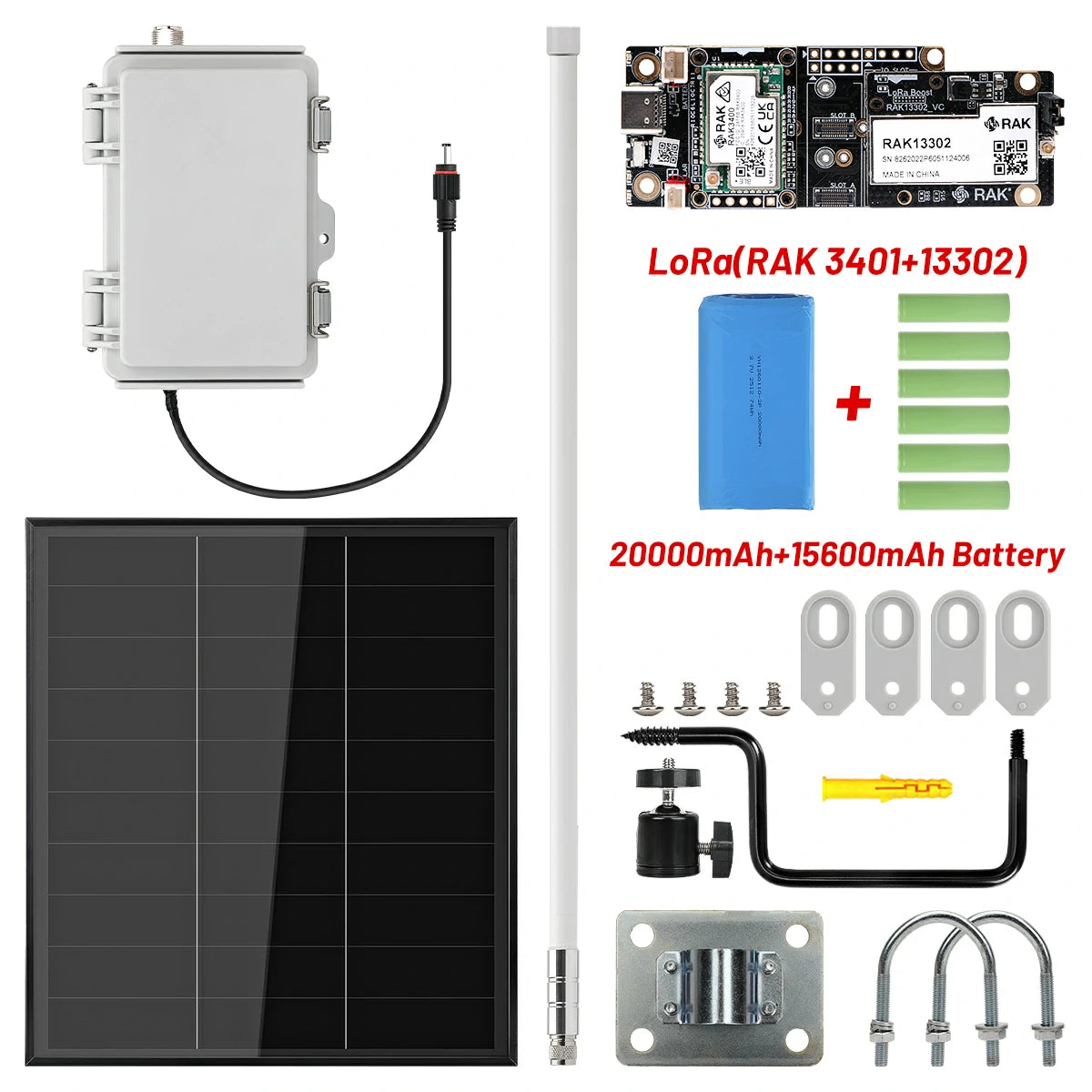

Accessories		20W Solar Panel system--1pc Wismesh 1w LoRa Booster(RAK19007+ 3401+13302) IP66 Waterproof Box--1pc 915MHz Antennas--1pc Tree Mount--2pc Fixed buckle--1pc Battery--20000+15600mAh(optional)
Certification

Note:

at present,Wismesh 1w have the 915mhz only,have no 868mhz,since Euro not allow high power lora modules.Heltec V4 is the LoRa booster too,but it's higher power consumption.20W Solar system is stong enough to support Heltec V4.
