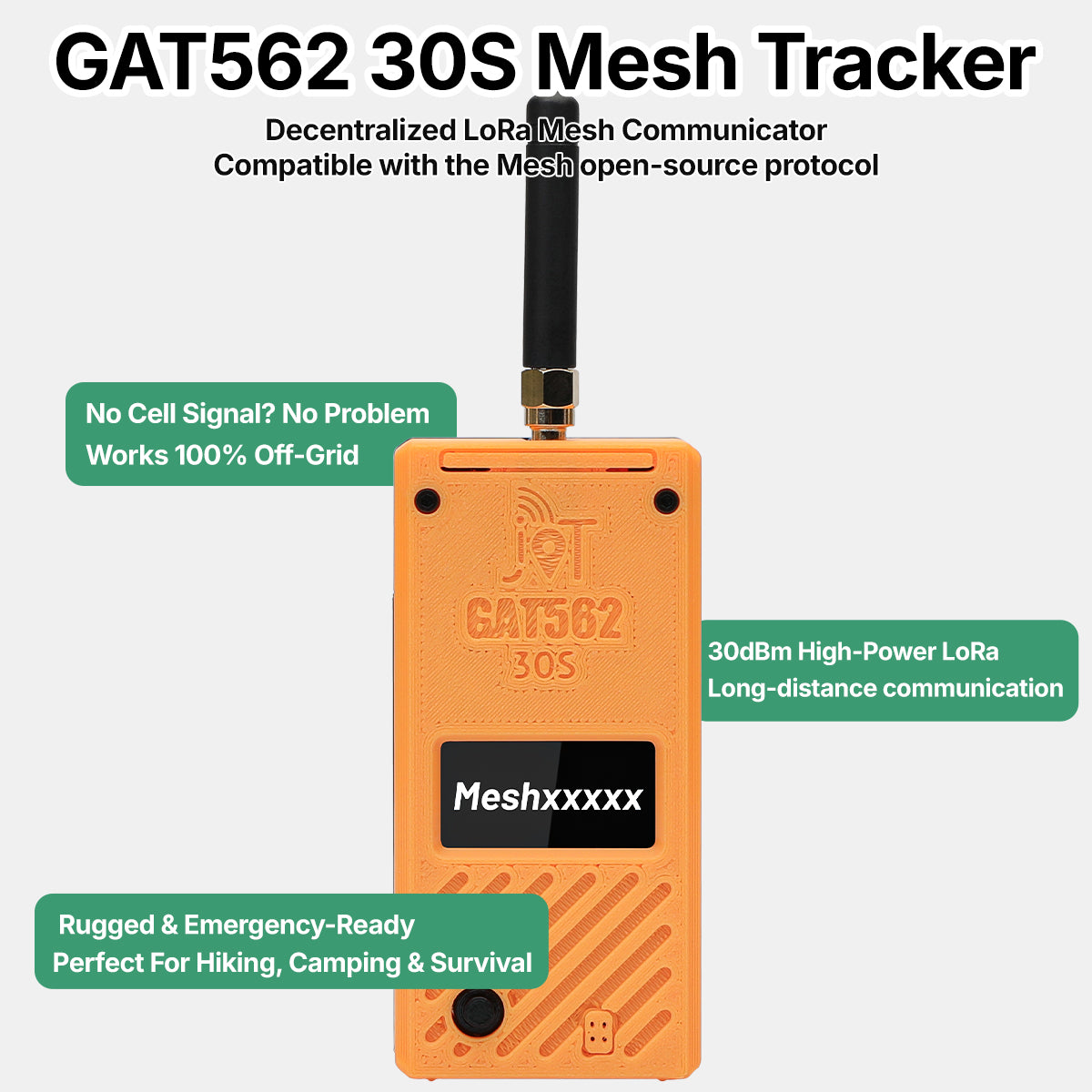

GAT562 30s 30dBm High Power Meshtastic Meshcore LoRa Radio Node

Feature:

Ultra-low power MCU

nRF52840 MCU Chip Bluetooth 5.0

SX1262 LoRa 433MHz/868MHz/915MHz

1.3 inch OLED display

30dBM PA Transmit Power(Max 100KM Range)

Joystick Remote typing

GPS Location information

18650(5000mAh) chargable  battery(not include)

Specifications:

Processor: nRF52840 (Bluetooth 5.0)

LoRa Radio: SX1262 (433MHz/868MHz/915MHz)

GNSS Modules:L76K GPS module(

Display: 1.3-inch OLED Display

Range: more then 100km (terrain dependent)

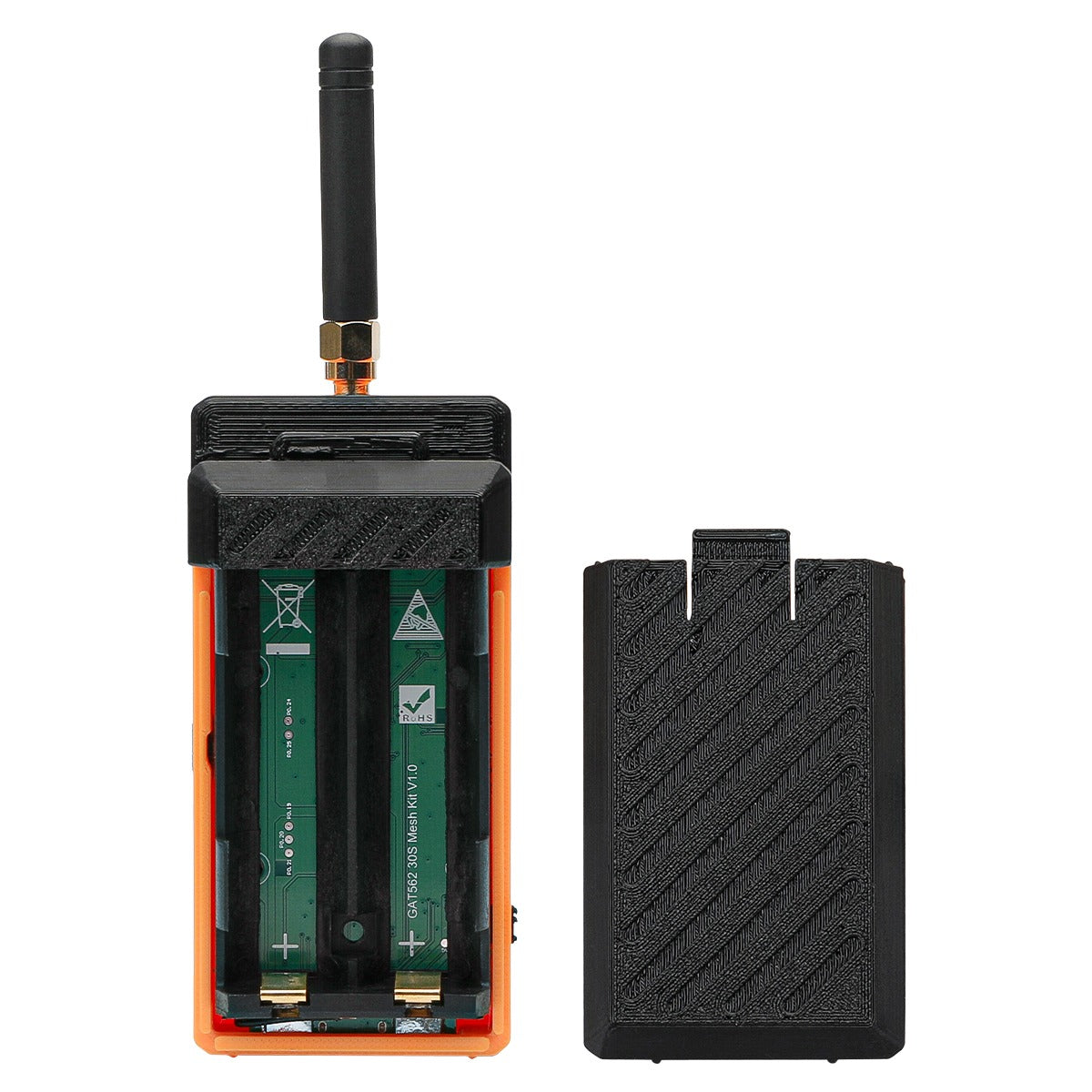

Battery:2pcs 18650 li battery,changable,chargable.

Standby time:14-28days with 2pcs 18650 total 5000mAh.

Charging:Type C 5V/1A

Type C interface:for Charging/flashing

Flash:Support Meshcore&Meshtastic

Temperature and humidity sensors(default not include,but Optional,contact with seller)

Waterproof:IP65

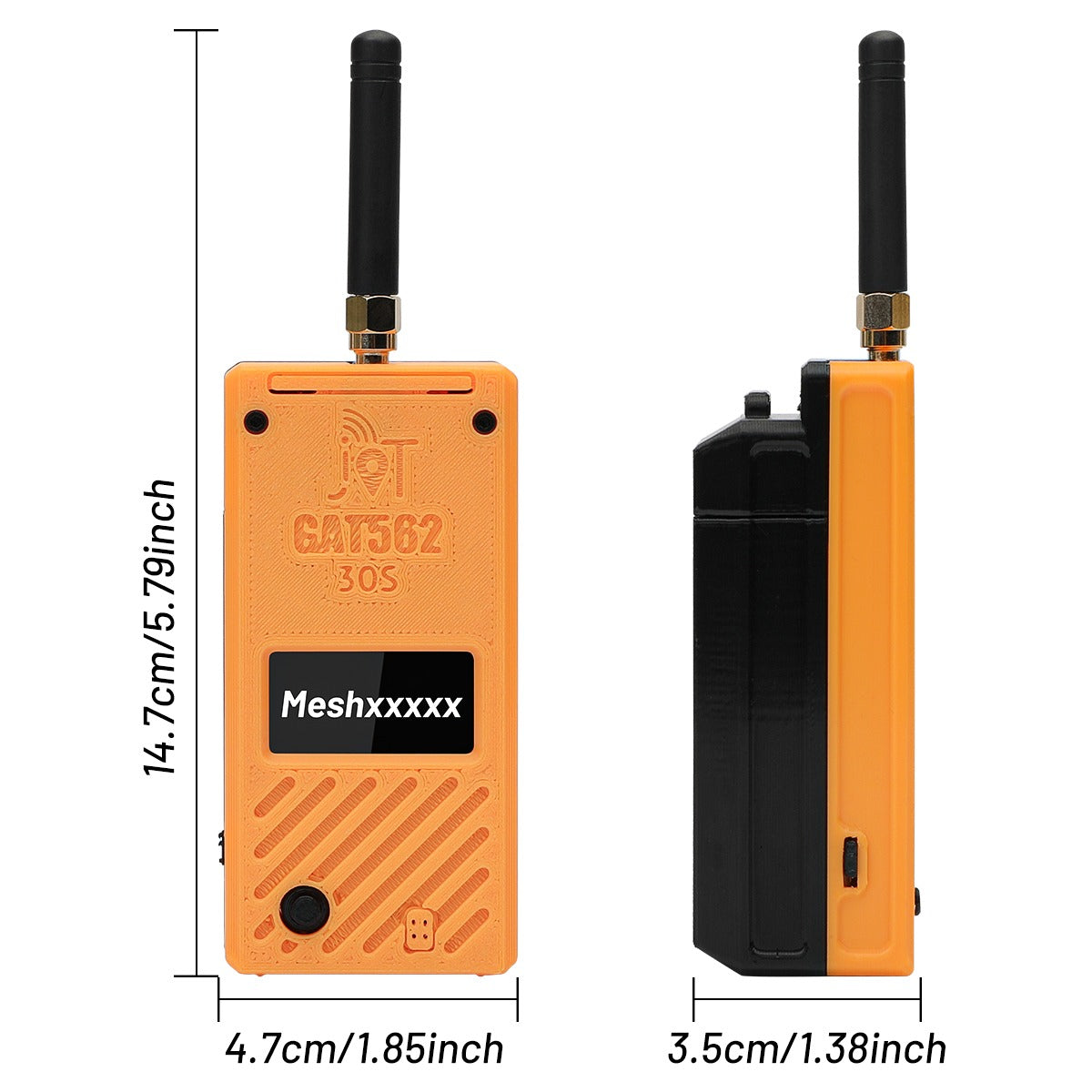

Size:4.5x3.4x9.5cm

Net Weight:0.095KG

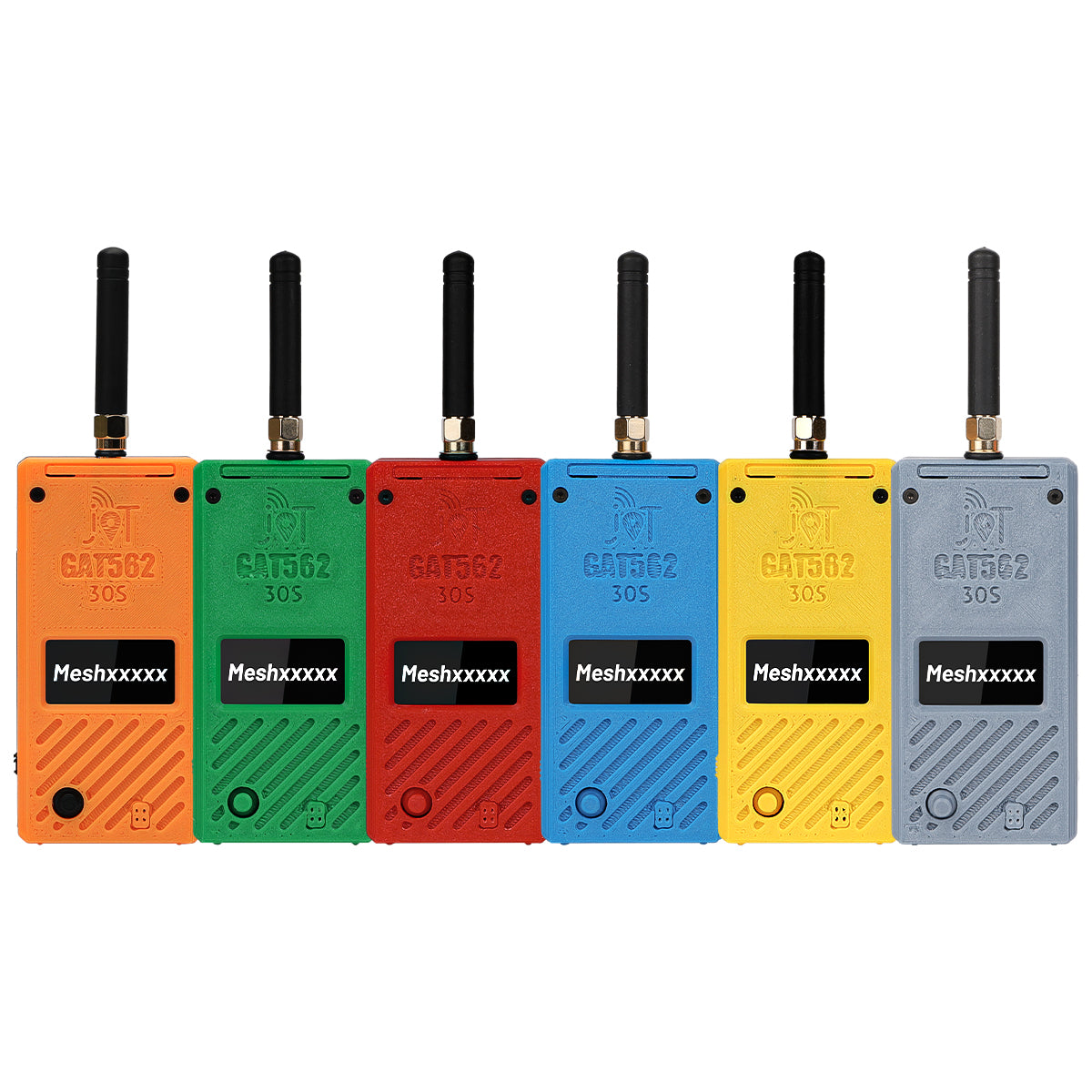

About the 3D print case,Buyer able to printing others colour if default colour is not good for you.

The link of GAT562 30S kits 3D Printing Case:

https://makerworld.com/en/models/1971757-gat562-30s-housing#profileId-2120099

The link for flasher meshtastic:

https://github.com/chinamesh/meshcn-firmware

The link for flasher meshcore:Choose RAK4631

https://github.com/meshcore-dev/MeshCore/tree/main/examples/simple_sensor

Flash the Meshtastic&Meshcore by Wireless

Download Mtools APP
