Quectel L76K GNSS GPS Module Board for Heltec V4 T114 IoT device 2.8V~4.3V compatible Meshtastic Tracker Radio Node Meshcore

Parameters：

Description:

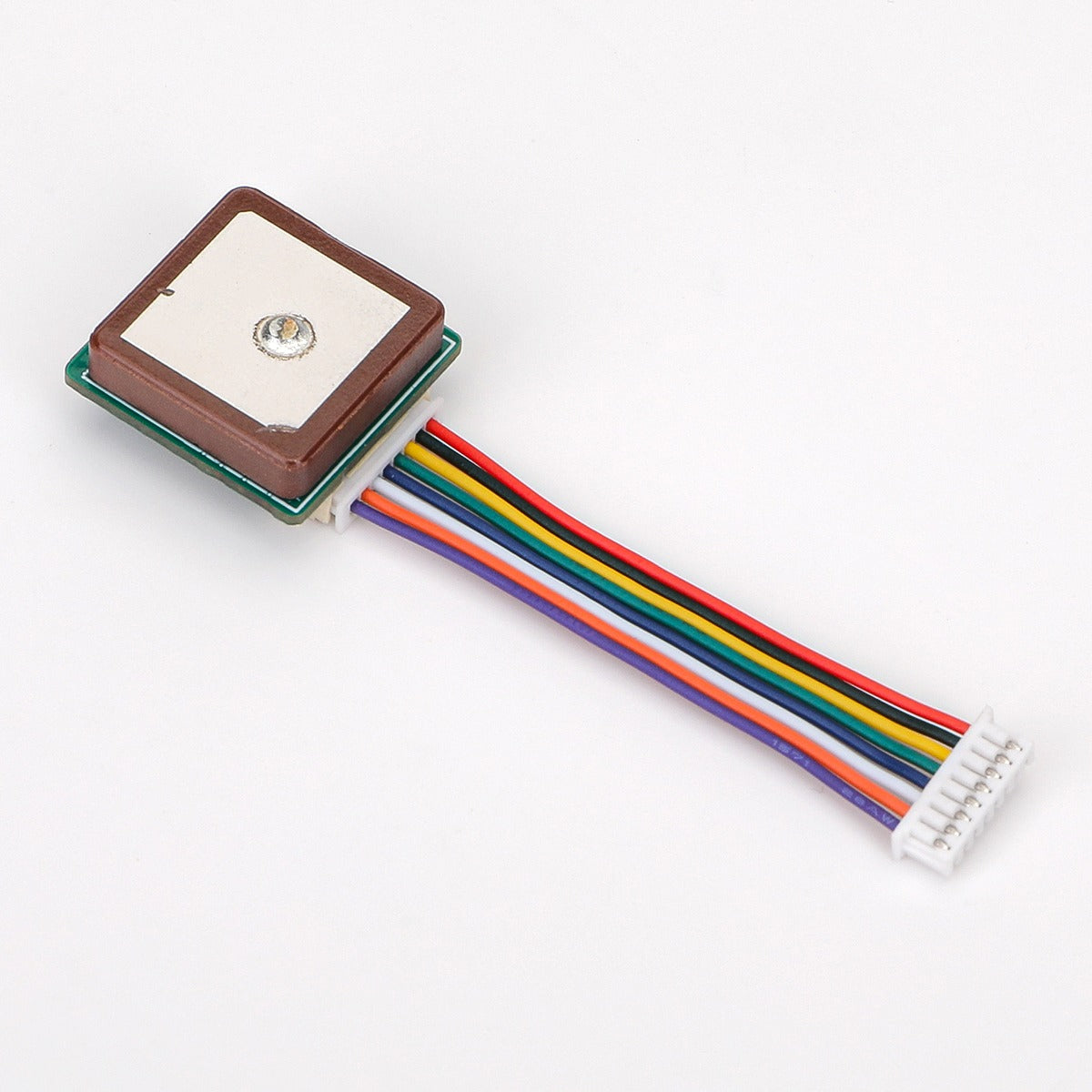

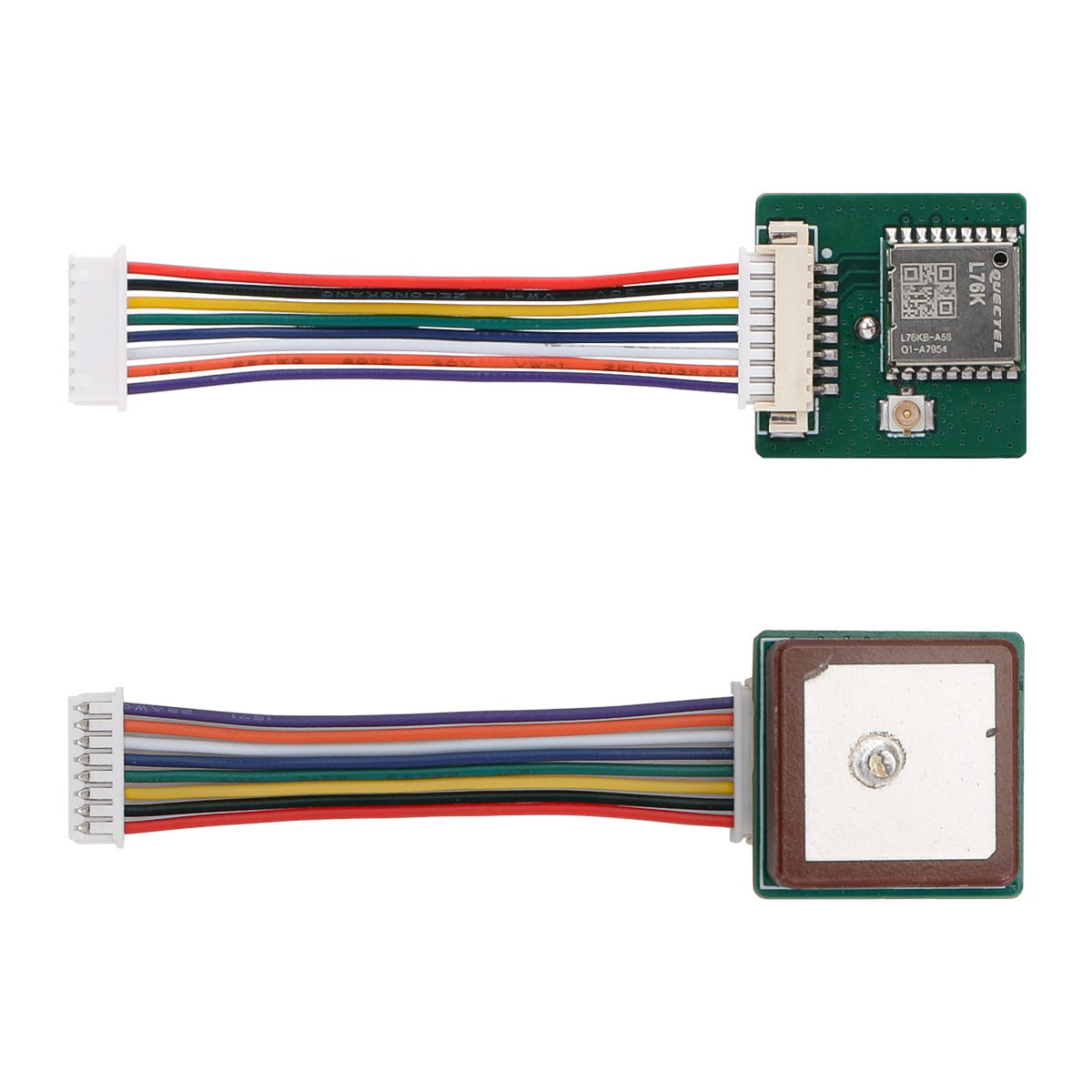

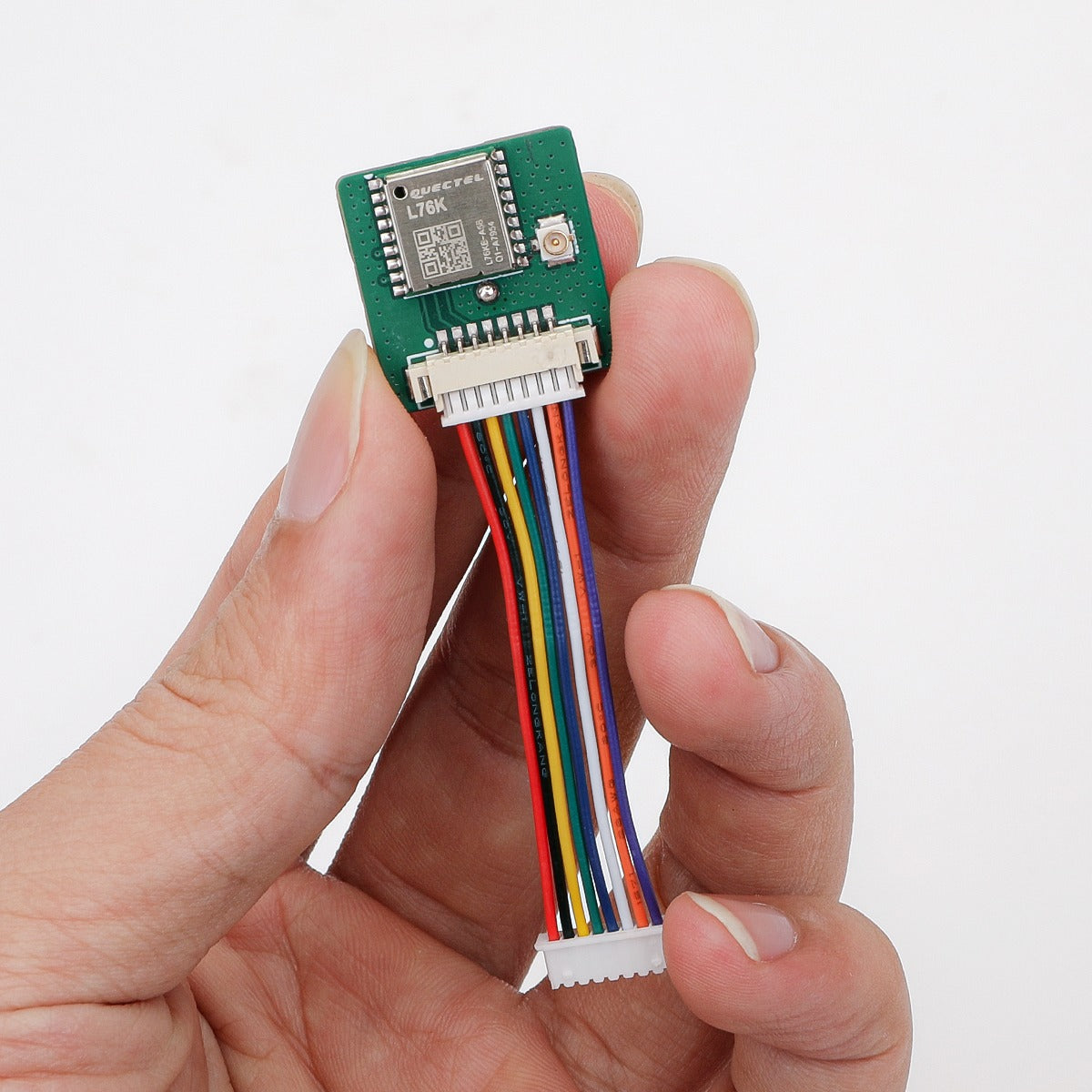

This is a mini size GPS module develop board.compact with Quectel L76K GNSS Chip, supports GPS multi-constellation positioning with up to 2.5m CEP accuracy, 10Hz update rate and ultra-precise 1PPS timing, ideal for navigation, tracking, and timing applications.

Ultra-Low Power Consumption：Designed for energy-efficient IoT device, L76K consumes only 18mA /3.3V, extending battery life in portable devices, asset trackers, remote sensors and long-running Meshtastic nodes.easy to integrate into drones, handheld devices, IoT boards and embedded GNSS development systems.

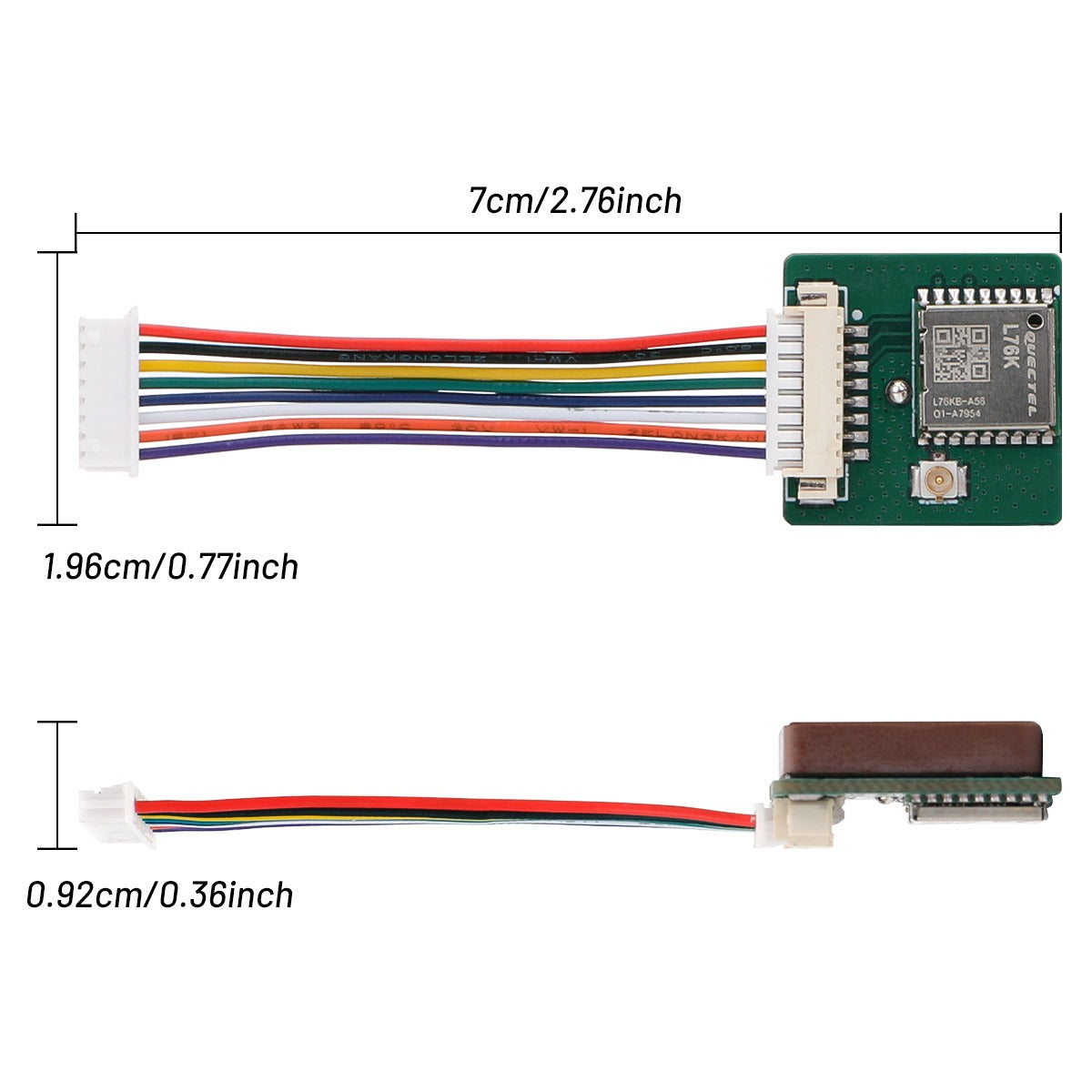

Mini Size:20x20x9mm Compact Design

Connector:1.25mm 8-pin SMD interface with 45mm adapter cable.

Wide Temperature:Stable operation from -40℃ to 85℃

Easy Integration:compatible support for iot industrial, outdoor tracking,mobile applications, ensuring reliable GNSS positioning in worldwide.

Compatible Device:

Pefect compatible with Heltec T114 LoRa Module,Heltec V4 LoRa Board,Heltec Mesh Tracker,Heltec Pocket,Helec Node.GPS modules.

Meshtastic device kits:

Meshtastic node,Meshtastic tracking,Meshtastic tracker,Meshtastic radio,Meshtastic kits

Meshcore device kits:

Meshcore Radio,Meshcore Tracker,Meshcore node,Meshcore Pocket

Others IoT devices:Outdoor GPS tracker,Sensor and so on.
