LILYGO T3S3 V1.3 Development Board with ESP32-S3&SX1262&

 0.96 Inch OLED Display for Meshtastic&Meshcore

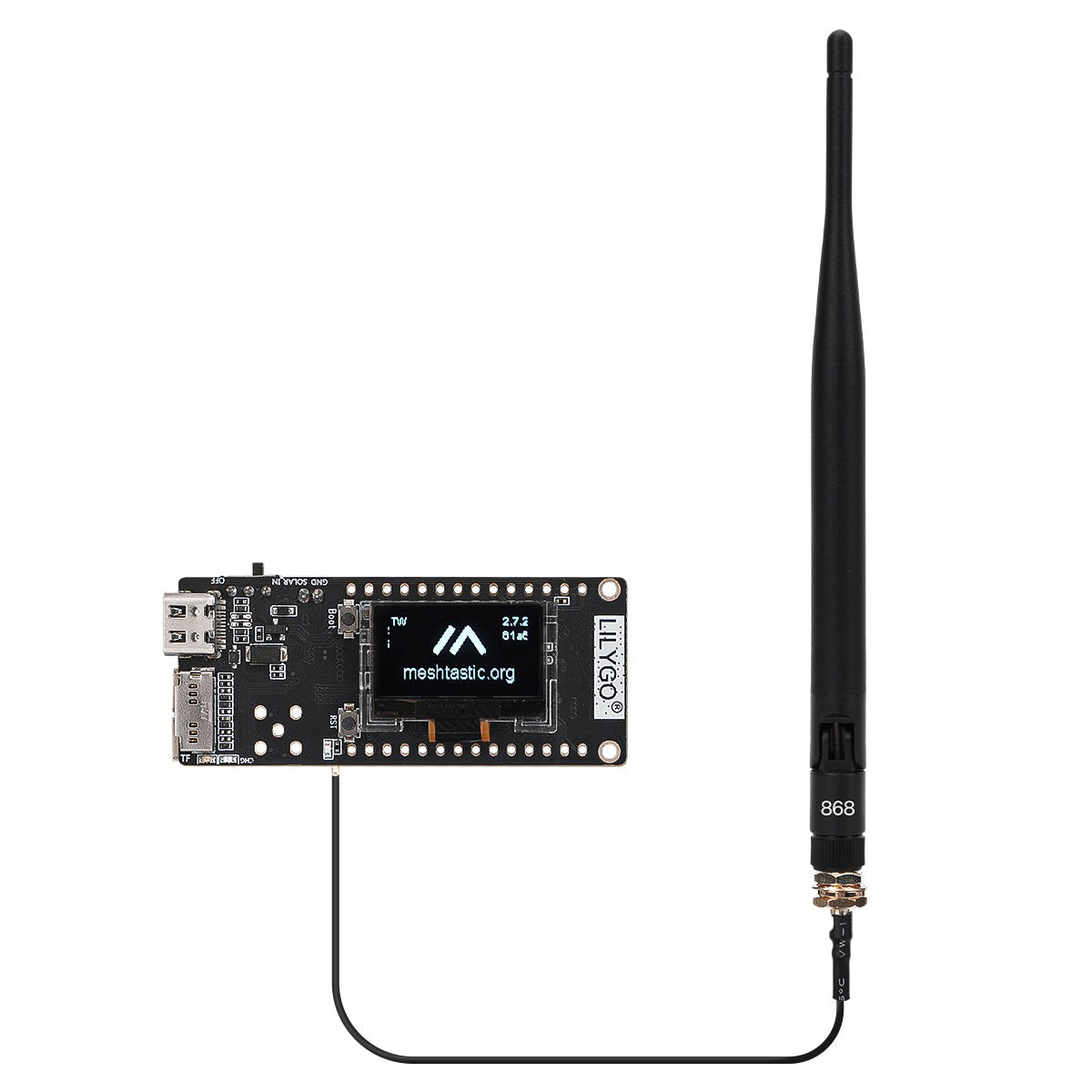

LILYGO T3S3 V1.3 is a compact and high-performance development board combine with ESP32 S3 MCU and SX1262 LoRa Chip, support flash meshtastic&meshcore radio,easy to DIY for mesh series product,for example Mesh Radio,Mesh Node,Mesh Solar Repeater.

Key Features:

*ESP32-S3 MCU: Equipped with the ESP32-S3FH4R2 Chip, the board supports Wi-Fi 802.11 b/g/n and Bluetooth 5.0, enabling fast, stable wireless communication for IoT connectivity, data streaming, and device control.

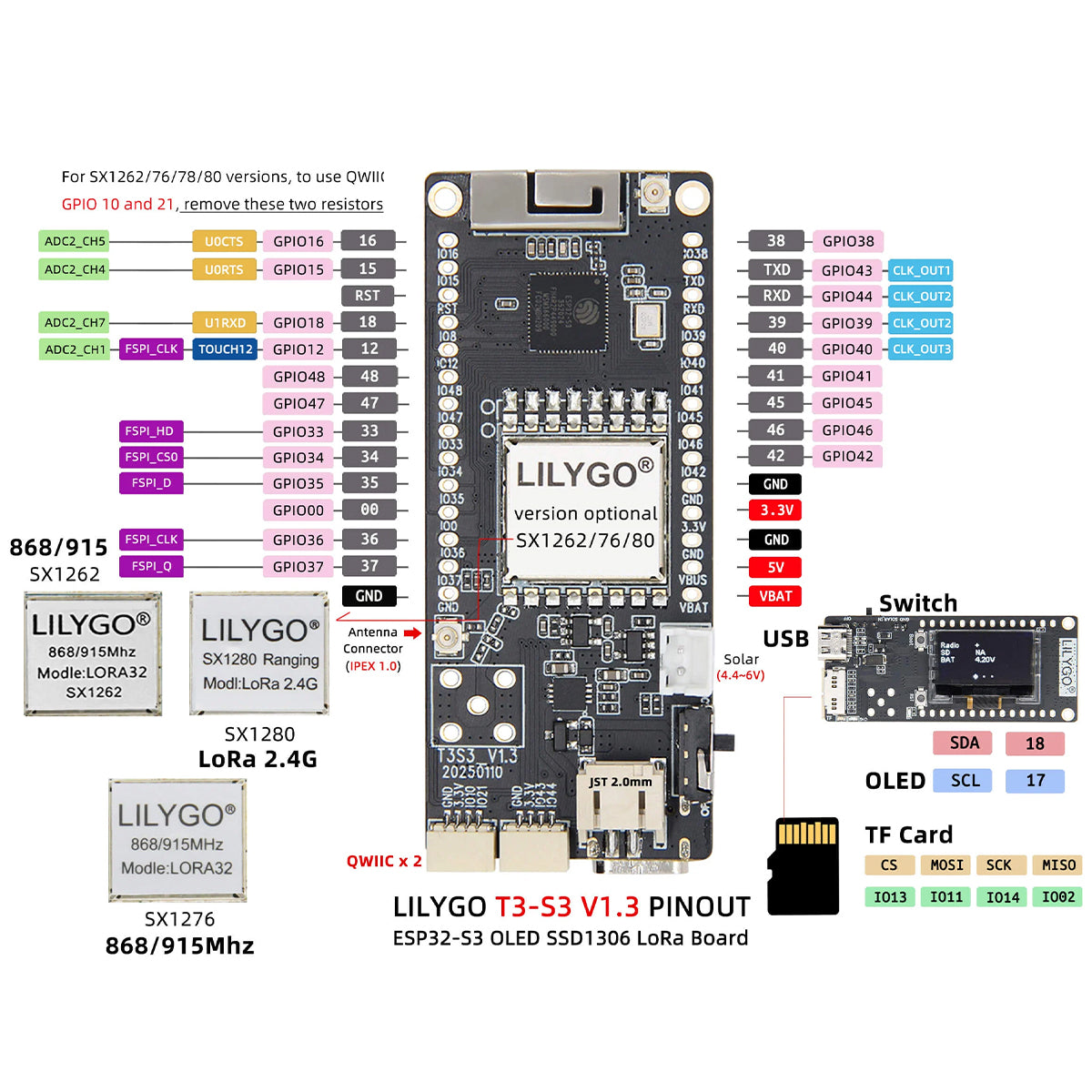

*0.96 Inch OLED Display: Features a 128x64 resolution SSD1306-driven I2C OLED display, providing clear real-time data visualization for sensor readings, project status, and user interfaces. The I2C interface uses IO18 (SDA) and IO17 (SCL) for easy integration.

*Flexible Memory & Storage: Comes with 4MB Flash and 2MB PSRAM, offering ample space for code, data storage, and complex application execution. Supports TF card expansion for additional storage needs.

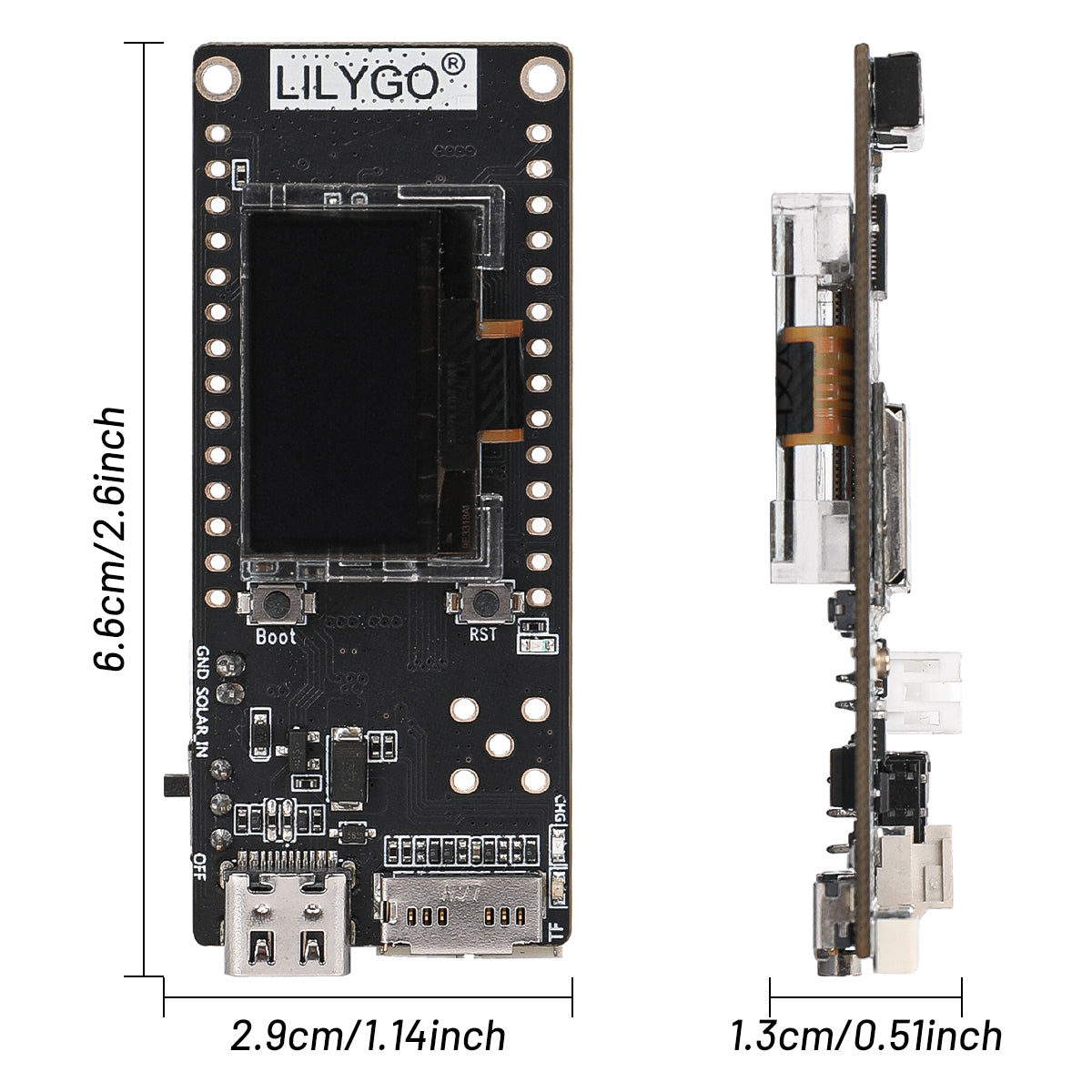

*User-Friendly Design: Integrated reset and boot buttons simplify programming and debugging. The compact form factor (56mm × 36mm × 24mm) makes it perfect for space-constrained projects, while pin headers ensure easy breadboard compatibility and hardware expansion.

•Versatile Power Options: Supports power supply via USB-C port for programming and direct power, as well as compatibility with 3.7V LiPo batteries (not included) for portable, off-grid applications. Ideal for building mobile IoT devices and field-deployed sensors.

Parameter:

T3S3 v1.3 Applications:

The LILYGO T3S3 V1.3’s combination of wireless connectivity, integrated display, and compact design makes it suitable for a wide range of projects, including:

*IoT Weather Stations: Monitor temperature, humidity, and atmospheric pressure with connected sensors, displaying real-time data on the OLED screen and transmitting it wirelessly to cloud platforms.

*Smart Agriculture Sensors: Deploy in fields to track soil moisture, light levels, and crop health, sending alerts to your device when conditions require attention. Perfect for remote farm monitoring.

*Home Automation Controllers: Integrate with smart home devices (lights, fans, thermostats) to create a custom control panel with real-time status displays and wireless control via Wi-Fi or Bluetooth.

*Portable Data Loggers: Use the TF card slot to log sensor data, environmental metrics, or network information during field research or industrial monitoring projects.

*Educational & Hobby Projects: Ideal for STEM learning, embedded systems training, and DIY electronics. The board’s compatibility with Arduino IDE and sample code makes it easy for beginners to get started.

*Remote Sensing Devices: Build long-range monitoring solutions for industrial

Why Choose LILYGO T3S3 V1.3?

LILYGO is renowned for creating high-quality, maker-friendly development boards, and the T3S3 V1.3 is no exception. Here’s why it stands out:

*Reliable Performance: The ESP32-S3 chip delivers powerful processing capabilities and stable wireless connectivity, ensuring your projects run smoothly in diverse environments.

*Easy to Use: Compatible with popular development tools like Arduino IDE and CircuitPython, with comprehensive technical documentation and sample code available on LILYGO’s GitHub repository for quick setup and debugging.

*Flexible Expansion: Pin headers and TF card support allow you to customize the board with additional sensors, actuators, and storage, adapting to your project’s unique needs.

*Portable Design: Battery compatibility and compact size make it perfect for on-the-go projects, from field monitoring to portable gaming consoles.
